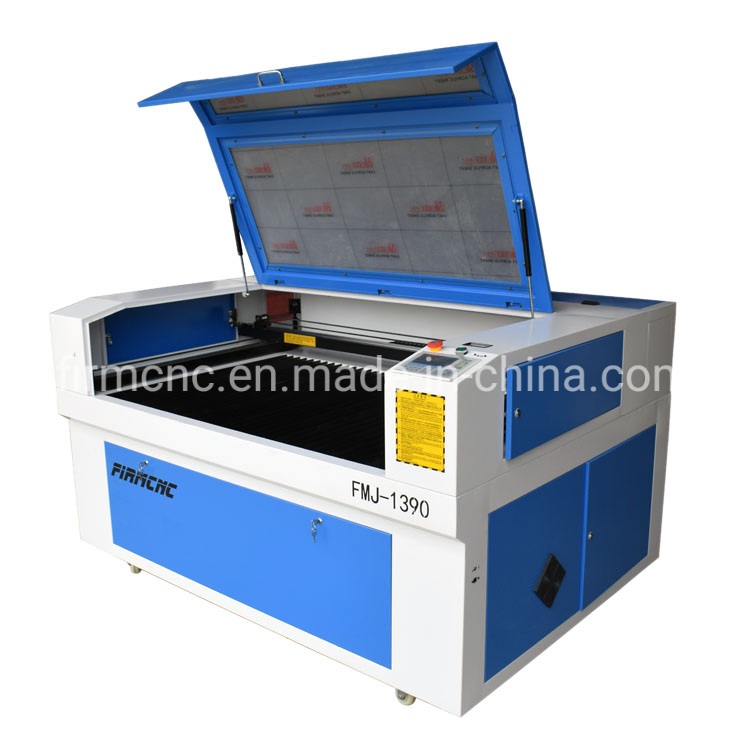

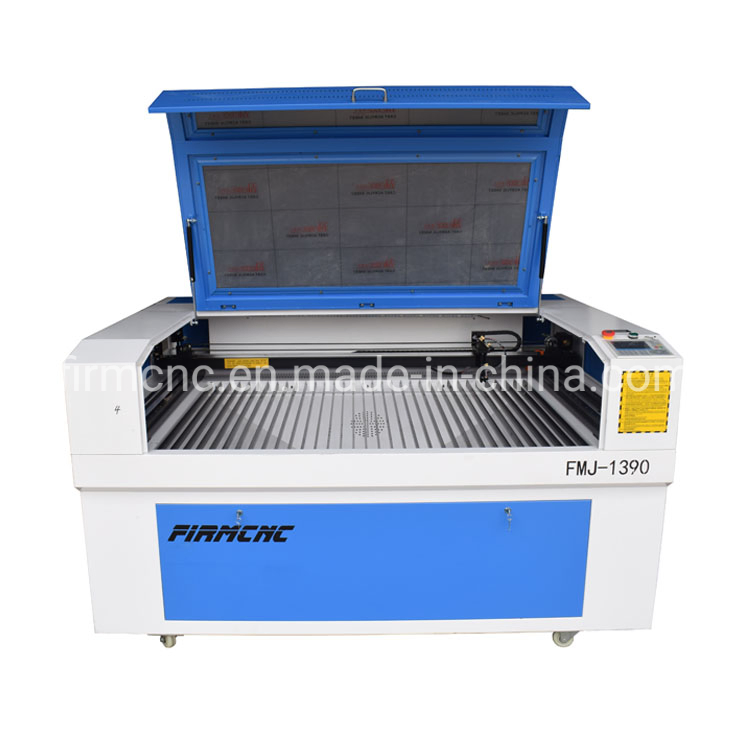

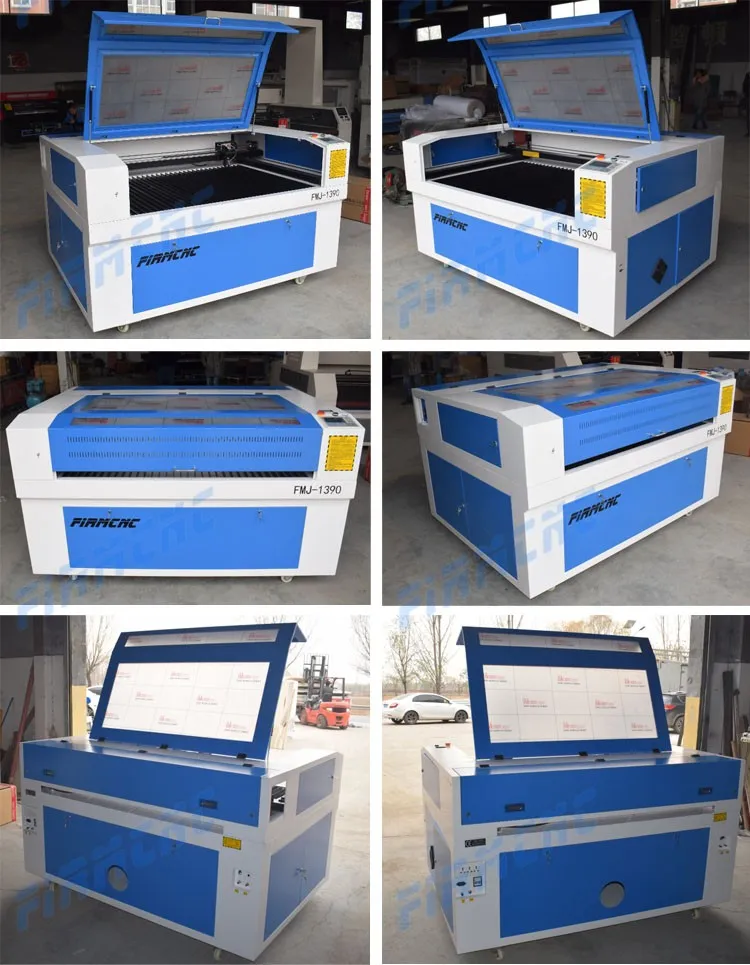

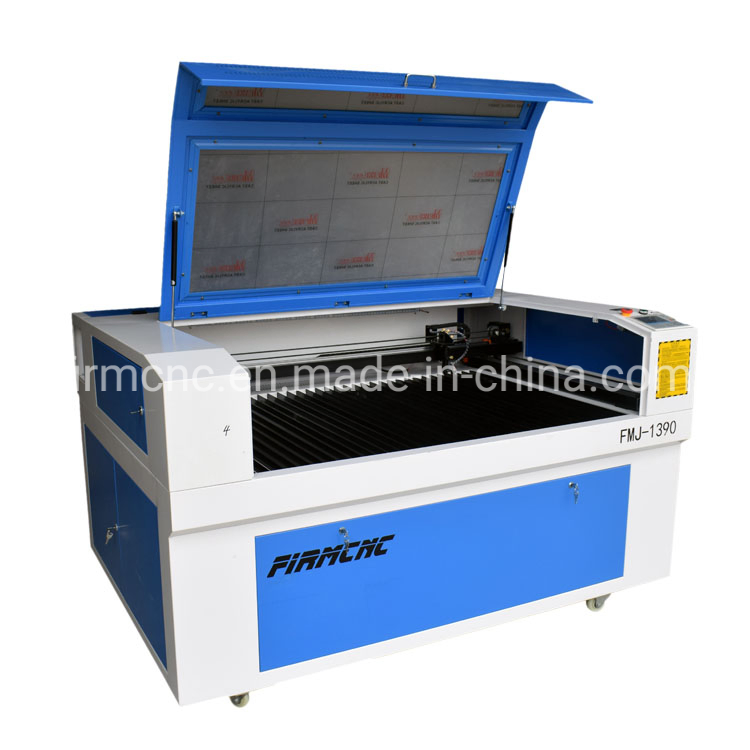

New Wood Metal CO2 Laser Cutting Engraving Machine

1 / 5

New Wood Metal CO2 Laser Cutting Engraving Machine

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Info

Model NO.

FMJ1390

Application

Leather Industry, Domestic, Carpentry, Construction Industry, Molds & Dies, Crafts Industry, Advertising Industry

Cooling System

Water Cooling

Technical Class

Continuous Wave Laser

Automatic Grade

Automatic

Applicable Material

Metal and Nonmetal

Type

CO2 Laser

Laser Classification

Free Electron Laser

Engraving Method

Vector Engraving

Laser Tube

60W/80W/100W/130W/150W/180W/280W

Control System

Ruida 6442s Control System

Table Structure

Blade Table / Honeycomb Table

Transmission

Shanghai Fulong Belt Drive

Motor

Step Motor / Servo Motor

Cutting Materials

Metal and Nonmetal

Water Chiller

Cw5000, Cw5200

Lens & Mirrors

Singapore Lens & Mirrors

Locating Device

Auto Focus + Red Light Pointer

Transport Package

Standard Export Wooden Case

Specification

1300*900mm

HS Code

8456110090

Production Capacity

100 Sets/Month

Main Features of CNC Laser Cutting Machine

Support dynamic display which will show process path and coordinate point, real-time work track display.
Full accessories included such as water chiller, exhaust fan, air compressor.
Equipped with the RECI/YONGLI laser tube, longer laser life and more stable performance.

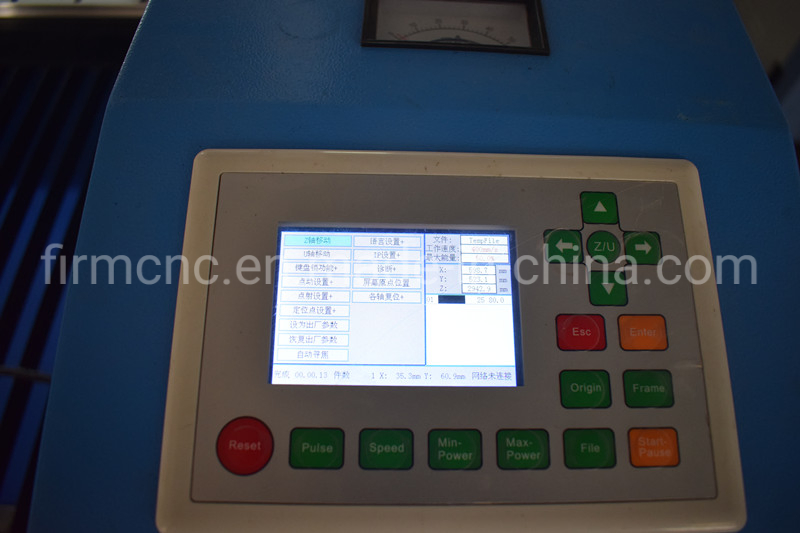

Ruida or Leetro control system, PMI guide rails and high quality belt transmission.
Lens and mirror imported from Singapore, longer working time.
Transmit files directly from CorelDraw, AutoCAD. USB offline control system and interface.
Support work time preview and interruptible engraving recovery after power-off.
Automatic up and down table, rotating device, auto focus, dual head design, air filter, auto feeding (for fabric) for option.

Technical Specification of CNC Laser Cutting Machine

Model	FMJ9060	FMJ1390	FMJ1610	FMJ1325	Customized
Working area	900*600mm	1300*900mm	1600*1000mm	2500*1300mm	Customized
Laser type	Co2 sealed laser tube
Laser power	40w/60w/80w/90w/100w/130w/160w/180w/280w/300w
Cutting Platform	Blade table (Optional : Honeycomb table)
Control system	RuiDa control system
Drawing software	CorelDraw, PhotoShop, AutoCAD, TAJIMA
Data transmission	USB off-line
Applied materials	leather, cloth, paper, wood, plastic, bamboo ware, acrylic, crystal, ABS board, double color board, plywood, MDF, EVA foam etc.
Driving motor	Leadshine stepper motors and drivers (Optional : servo motor and drivers)
Transmission Way	Shanghai Fulong Belt (Optional TBI ball screw)
Guide rails	Taiwan Hiwin linear square guide rail
Lens and Mirrors	Singapore Lens and mirrors
Cooling method	Circulating-water-cooling and protection system
Engraving Speed	0-64000mm/min
Cutting Speed	0-36000mm/min
Resetting positioning accuracy	≤±0.01mm
Minimum shaping character	Chinese Character: 2.0mm×2.0mm, English Letter: 1.0mm×1.0mm.
Supported graphic format	BMP, PLT, DST, DXF, AI
Operating Temperature	5°C-45°C
Operating Humidity	5-95% (Free of Condensed Water)
Working voltage	AC220V/380V
Optional Spare parts	Industrial Chiller, Rotary system, Up-down table, Auto focus system
Laser tube working lifetime	RECI: 8000h-10000h; 10 months warranty (Counted from the date of produced).
Auxiliary devices	Exhaust fan, smoke pipe, air pump

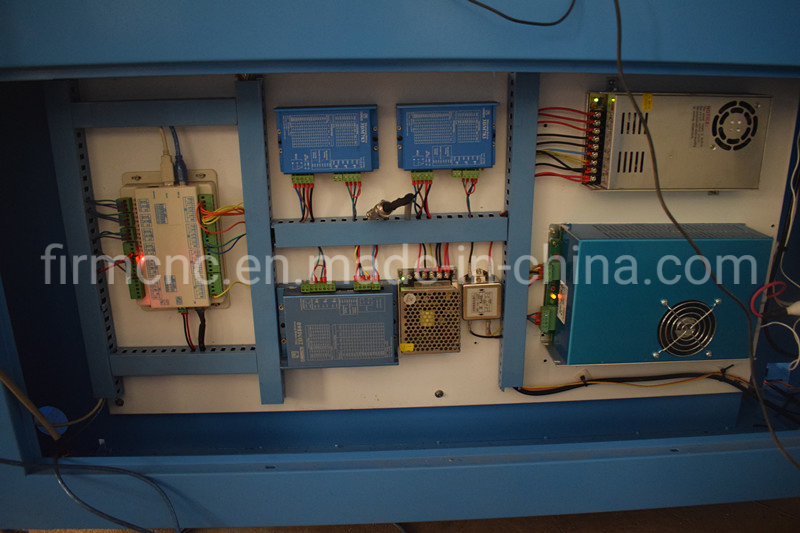

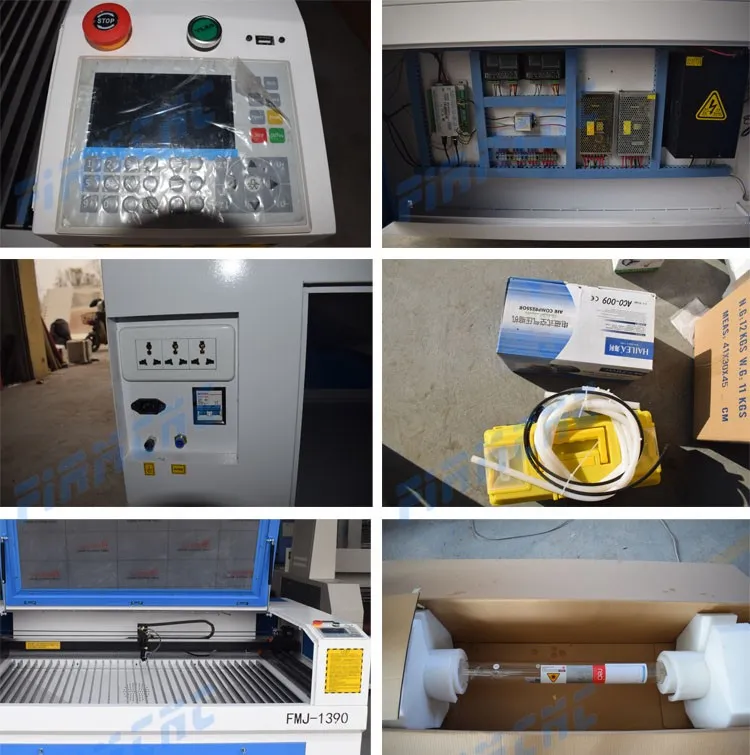

Main Configuration of CNC Laser Cutting Machine

Applicable Materials

Materials	Cut	Engrave
Acrylic/Plexiglas/Perspex	Yes	Yes
Organic board/Matte board/Double color plate	Yes	Yes
Wood/Bamboo/Veneer/MDF	Yes	Yes
Leather/Pig leather/Cow Leather/Sheep leather	Yes	Yes
Fabric/Cloth/Textile	Yes	Yes
Wool Felt	Yes	Yes
Paper/Cardboard/Chipboard press board	Yes	Yes
Plastic ABS/PVC/rubber/plastic	Yes	Yes
Ceramic/Tile/Marble/Stone/Granite/Tombstone	No	Yes
Fiber glass crystal/Glass	No	Yes
Others non-metal materials	-	Yes

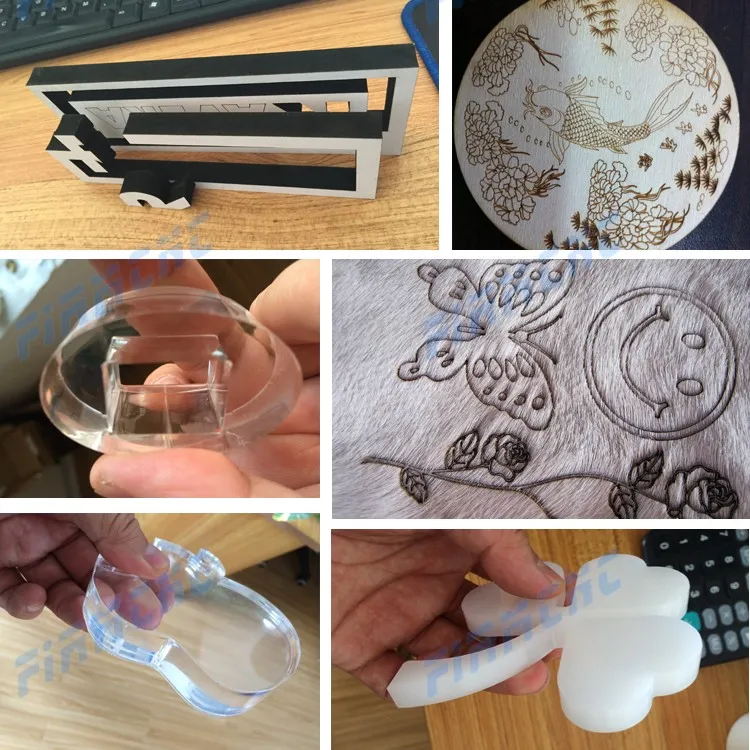

Samples

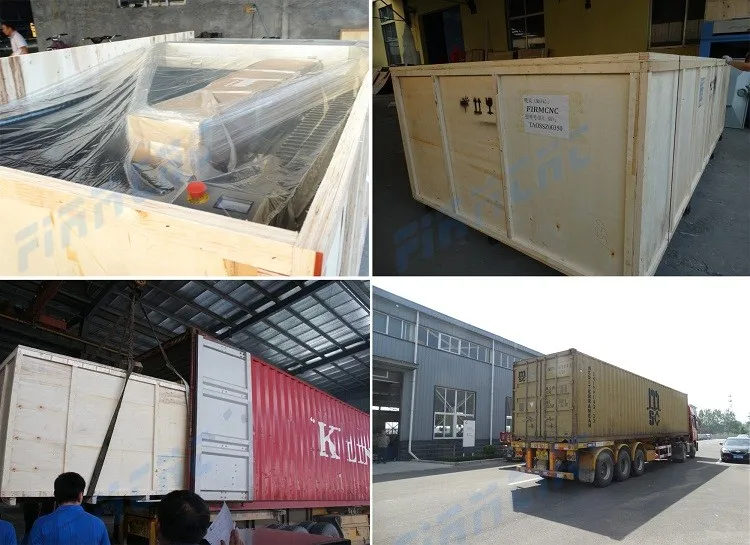

Packing & Shipment

Foam and wrapping film on the surface of the machine inside. Rain-proof, Dust proof.
Standard export plywood case. Upwards, moistureproof shipping marks. Safety guaranteed.
Fumigation-free packing.
Custom shipping marks available upon request.
Outside packaging clearly marked with size, model, weight, and related information.

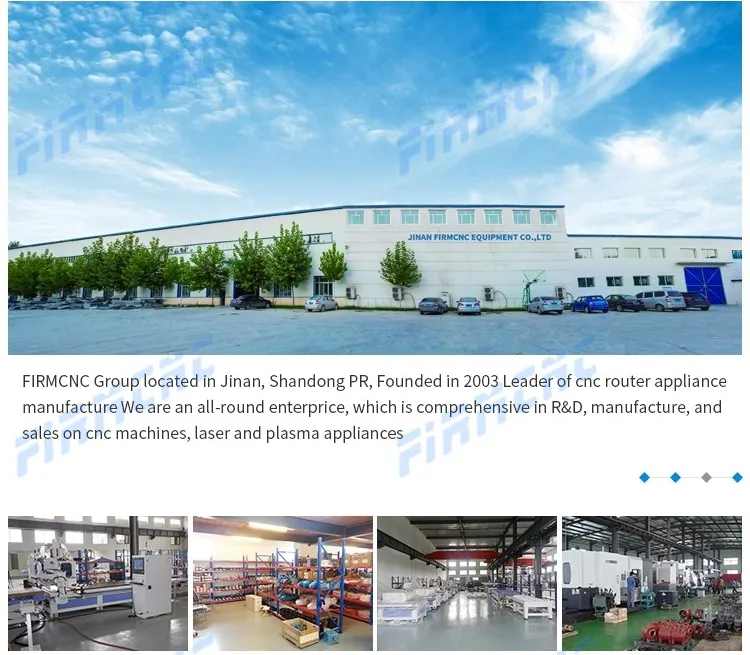

Customer Factory Visit

After-Sale Service

24-hour technical support around the clock.
Friendly English version manual and operation video CD disk.
7-15 working days fast delivery after payment confirmation.
Machine will be fully adjusted and configured before delivery; operation disk/CD is included.
Technicians can provide comprehensive remote online guidance if you have any questions.
Engineers are available to service machinery overseas under agreed terms.

Frequently Asked Questions

1. Can you recommend a suitable laser machine?

Yes, to recommend the perfect machine, please let us know your working area size, materials to process, and whether you need to engrave or cut (along with the maximum cutting thickness).

2. Do you provide an operation manual and working videos?

Yes, a comprehensive operation manual and operation videos will be sent to you after the order is confirmed.

3. Can samples be processed?

Yes, we can perform sample processing based on your requirements.

4. What support is available if I don't know how to operate the machine?

Our engineers will guide you through the process step-by-step using manuals, video calls, or email to ensure you can operate the machine successfully.

5. How are replacement parts handled if needed?

During the warranty period, replacement parts will be provided free of charge. After the warranty, parts are offered at agent pricing. Typically, all parts operate reliably for over a year without issues.

6. Is overseas training and after-sales service available?

Yes, technical training and support can be provided at your facility, with travel expenses and accommodation covered by the customer.
