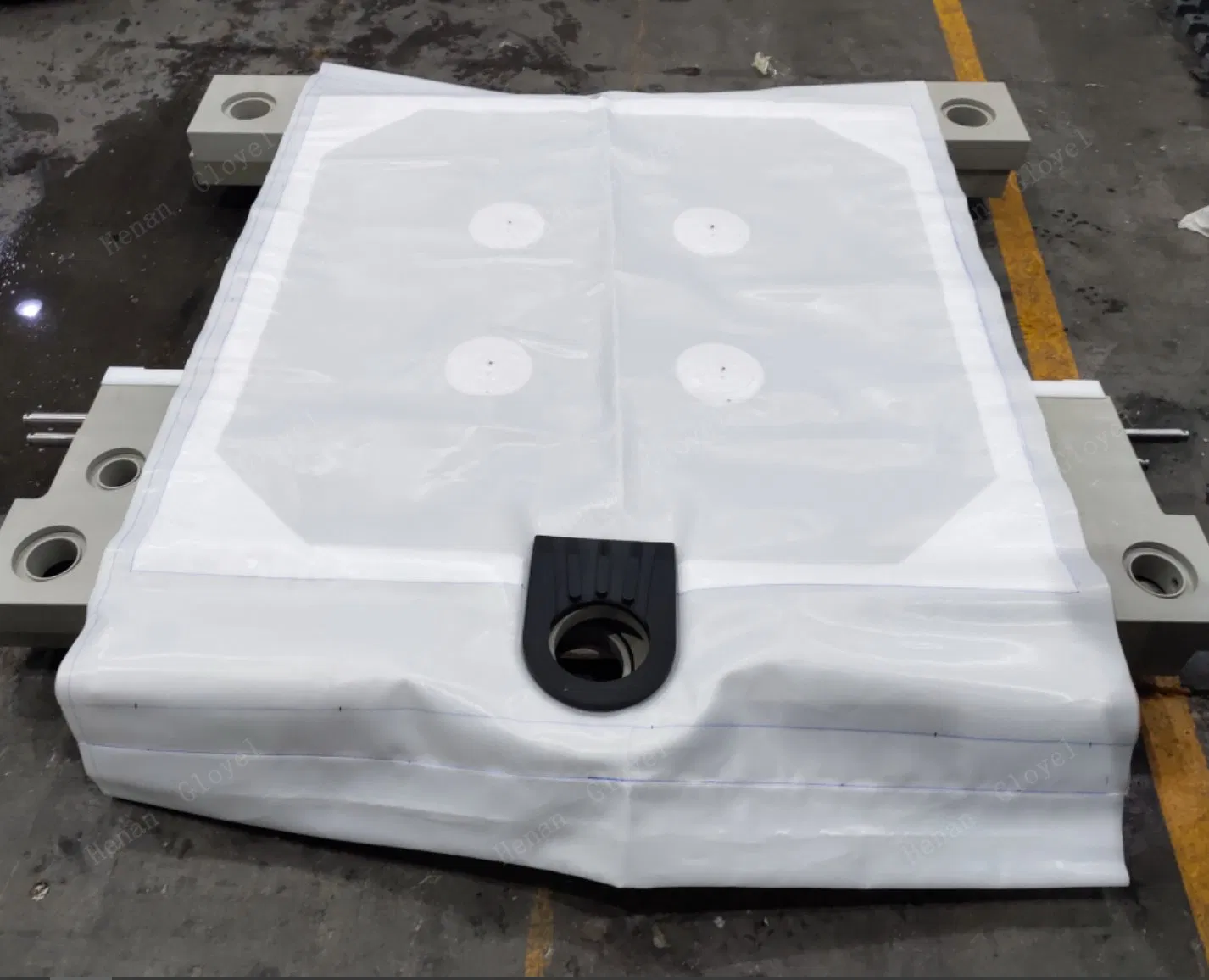

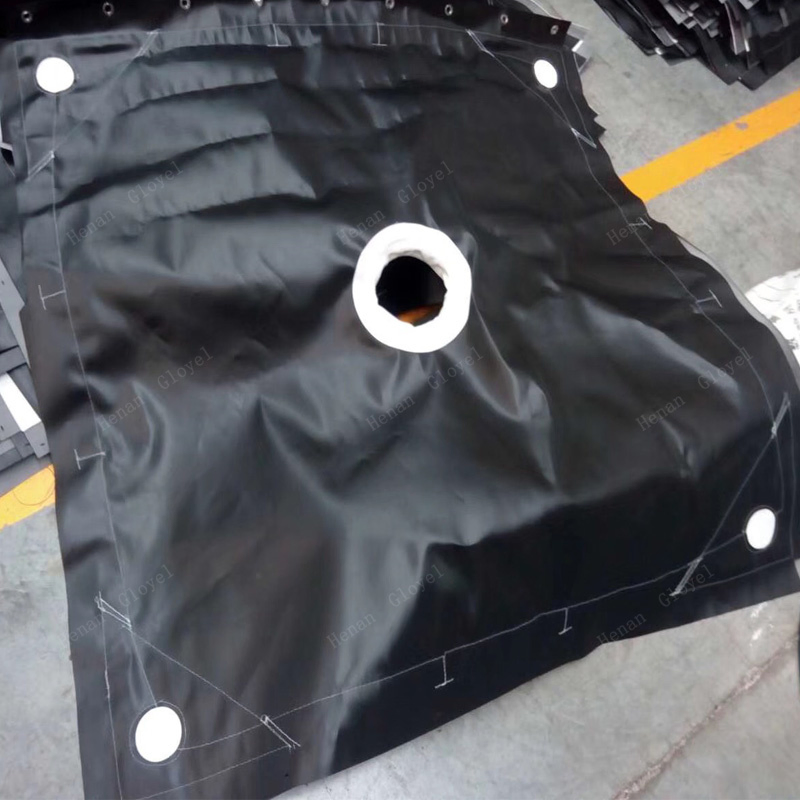

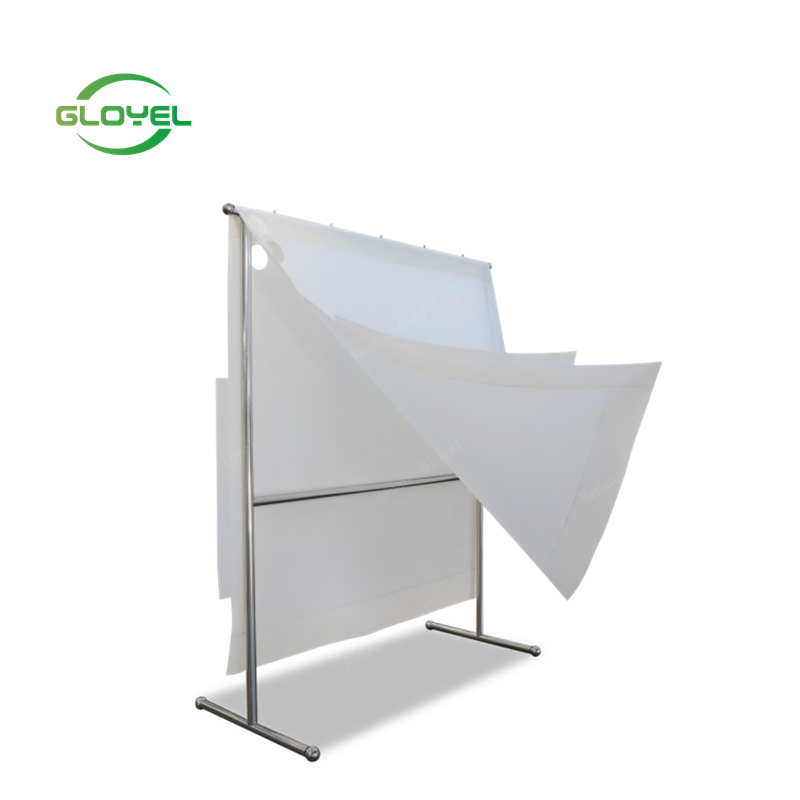

Durable Polyester Industrial Filter Cloth for Chamber Filter Press

1 / 5

Durable Polyester Industrial Filter Cloth for Chamber Filter Press

Customization:	Available
Material:	Polyester
Usage:	Air Filter, Liquid Filter, Powder Filter, Solid Filter

Send Inquiry

Product Description

Basic Specifications

Model NO.

GY series

Type

Woven Filter

Hole Shape

Round

Manufacturing Method

Manufacturing Cloth

Paper Type

Qualitative

Specification

800*800

Production Capacity

50000PC/Month

Package Size

68.00cm * 68.00cm * 68.00cm

Gross Weight

68.000kg

Product Description

Durable Polyester Industrial Filter Cloth for Chamber Filter Press

Based on different filter materials properties, we provide all kinds of custom-made cloth, including: polyester filter cloth, polypropylene filter cloth, nylon filter cloth, PVA filter cloth, and co-production of various specifications stainless steel mesh. These are widely used in sugar, oil, ceramics, food, mining, pharmaceutical, aerospace, and other industrial sectors.

The filter cloth is a critical component of the filter press. The efficiency of the equipment depends largely on the cloth's performance and its ability to achieve solid-liquid separation without clogging or damage.

Widely used in the field of liquid-solid separation in smelting, mining, petroleum, chemical, environmental protection, chemical fiber, medicine, sugar, ceramics, and food industries.

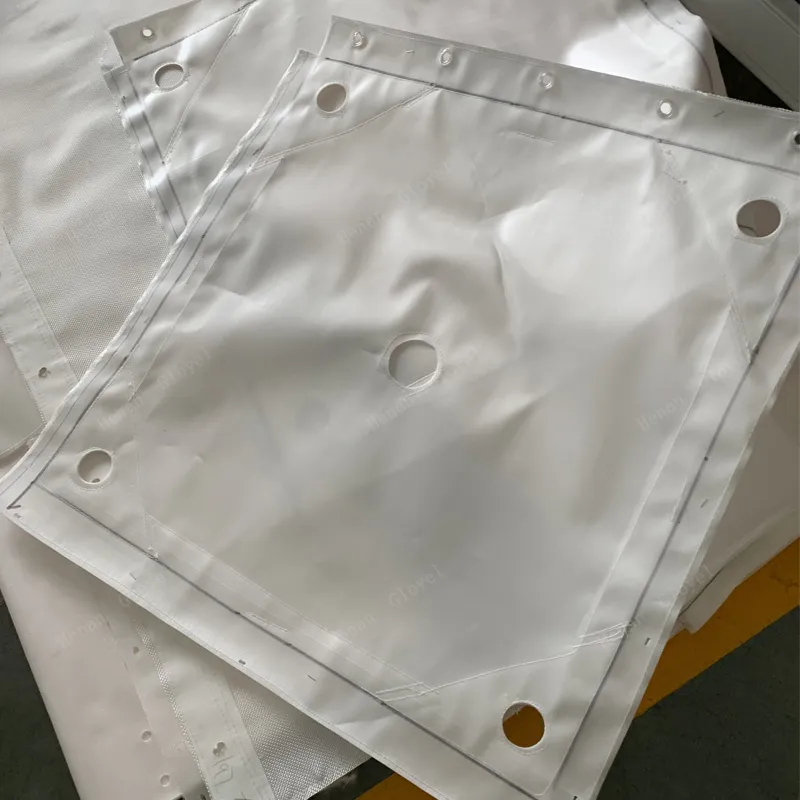

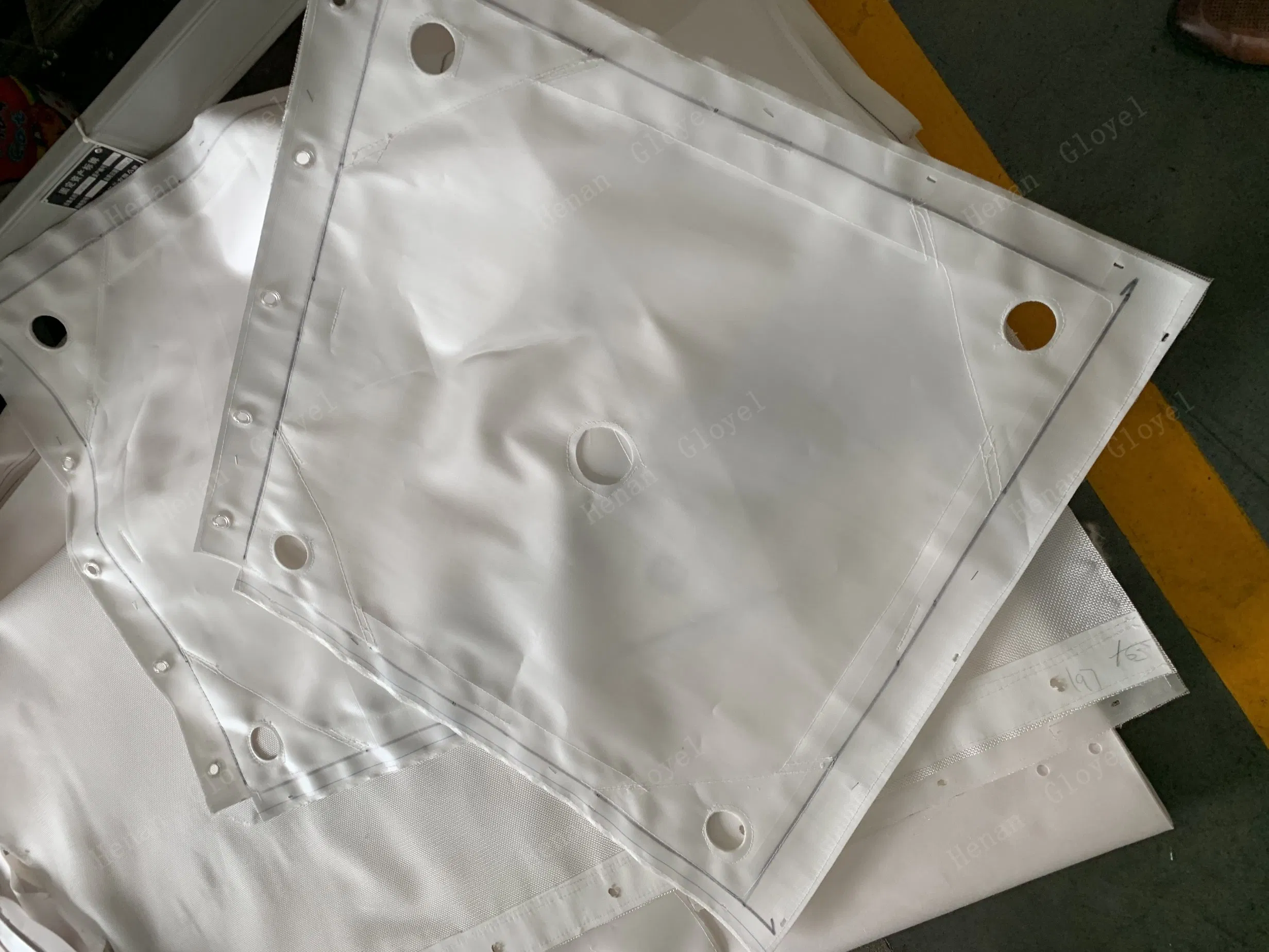

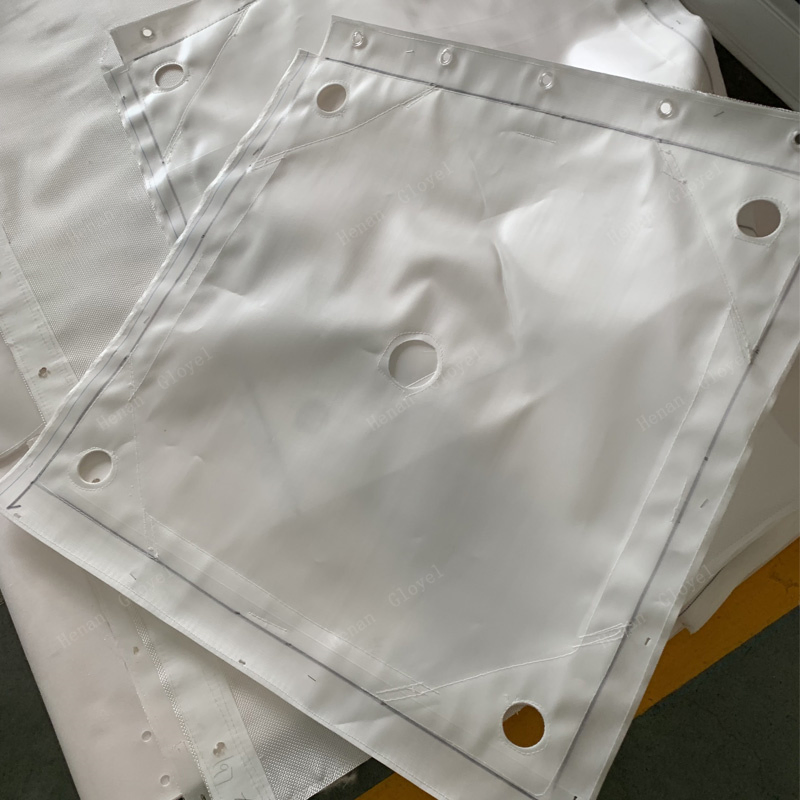

Detailed Photos

Technical Parameters

Model	g/M²	Breaking strength N/5×20CN		Elongation at break %		Operating temp ºC		Air flow CC/cm² sec	Thickness mm	Chemical Stability
Model	g/M²	T	W	T	W	Cont.	Mom.	Air flow CC/cm² sec	Thickness mm	Acid	Alkali
Room Temp	500-800	1000-2250	1100-2500	<30	<35	80	120	10-30	1-3	Powerful	Powerful

Filter Material Performance Comparison

Performance Name	Polyester	Nylon	PP	PVA
Acid Resistance	Good	Poor	Good	Poor
Alkali Resistance	Weak base	Good	Good	Good
Breaking Strength	4.3-9	4.5-9.5	4.5-9	4-10
Elongation	20-50	4.5-9.5	18-35	4-10
Softening Point	238-240	180-235	140-160	220-230
Melting Point	255-260	215-260	165-173	Obvious
Proportion	1.38	1.14	0.91	1.26-1.30

Workshop & Processing

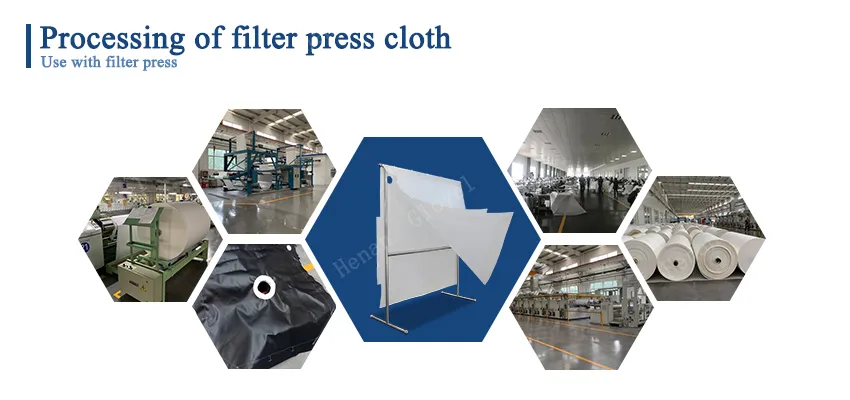

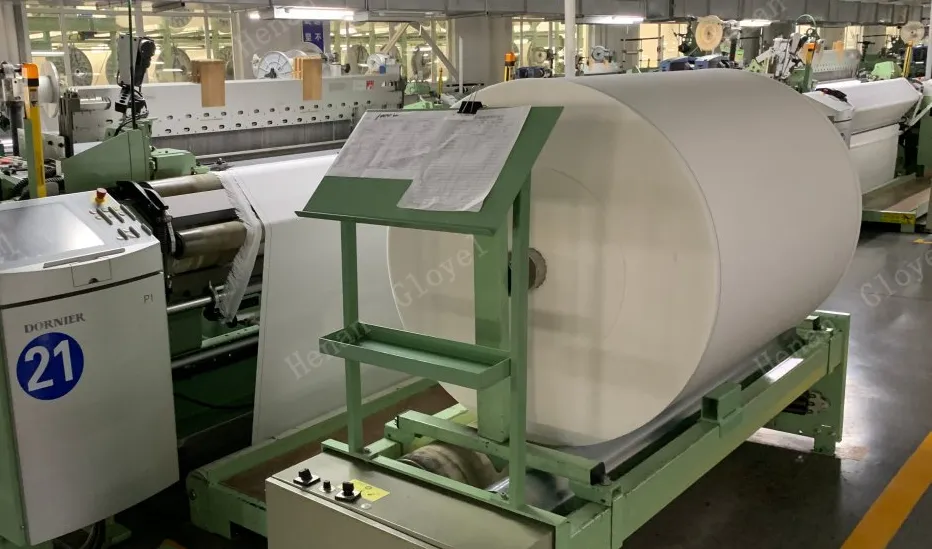

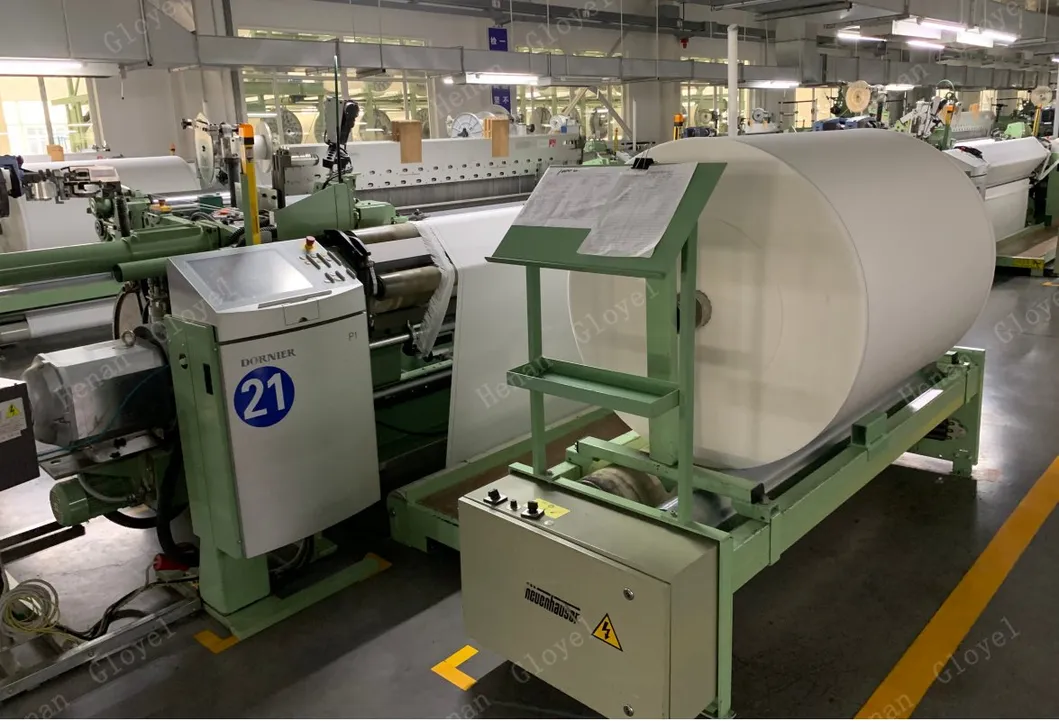

Processing of Filter Cloth

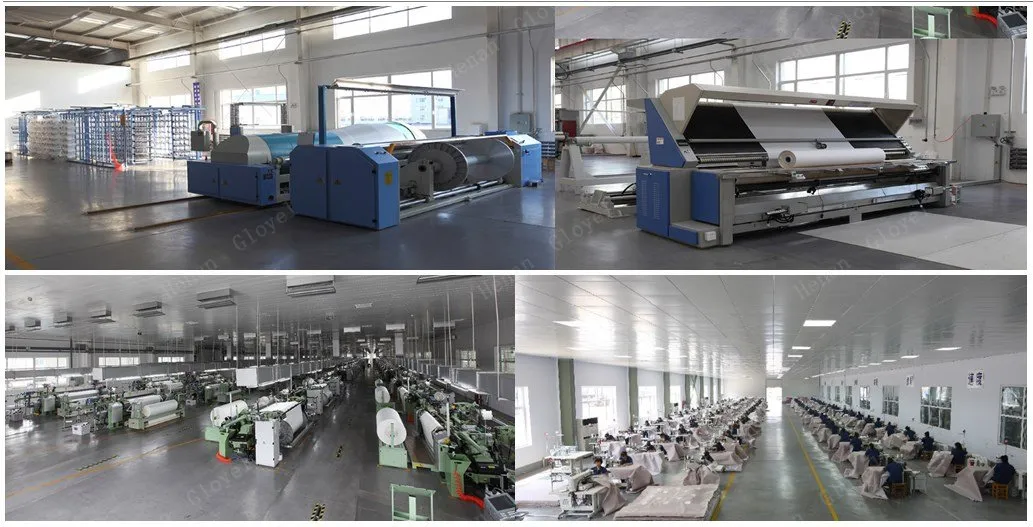

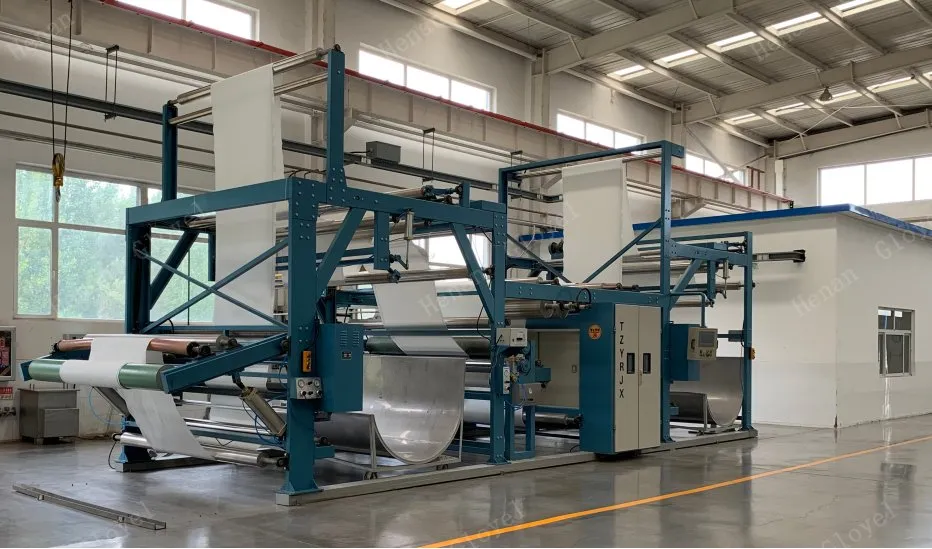

Workshop Line

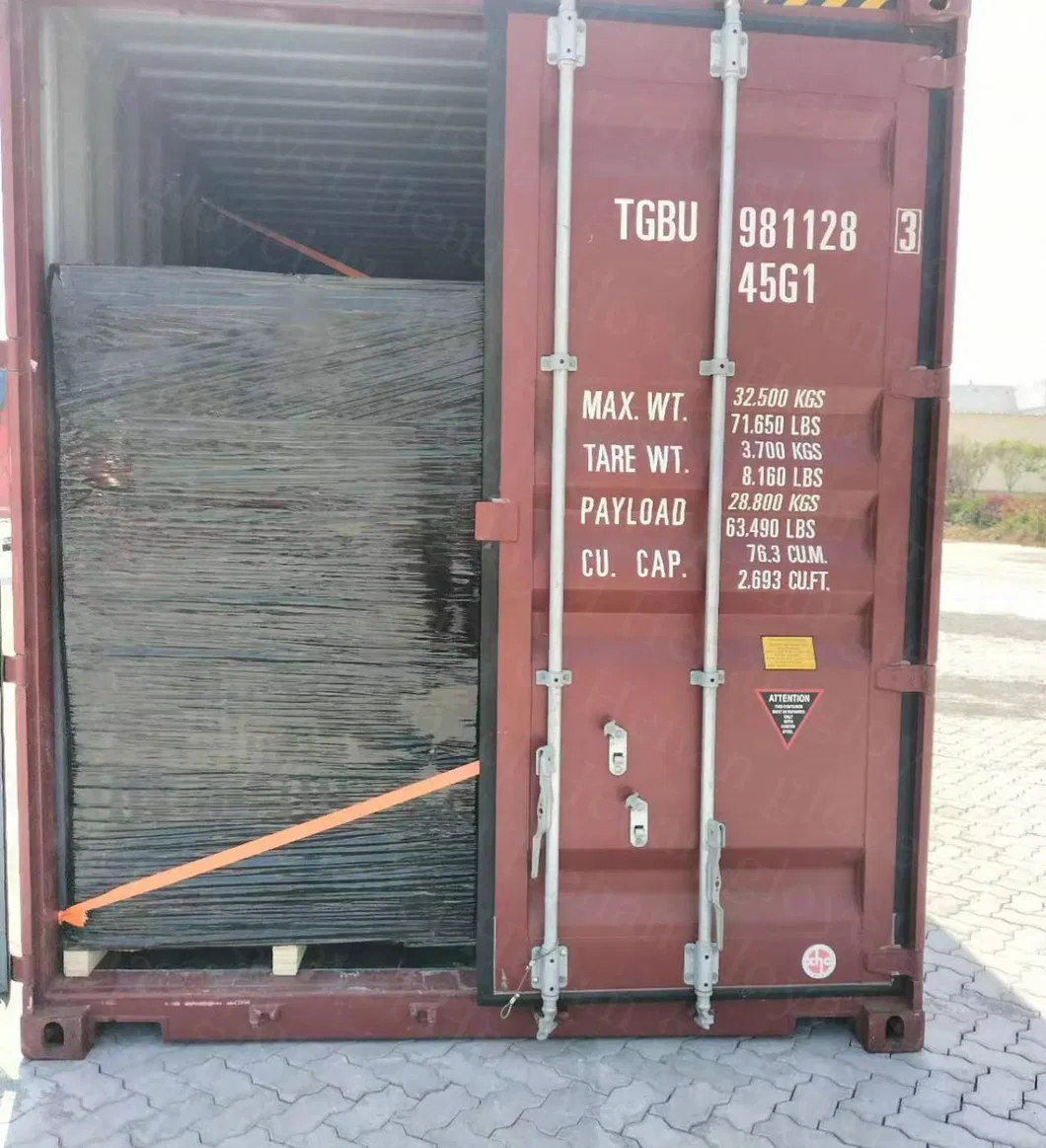

Package & Delivery

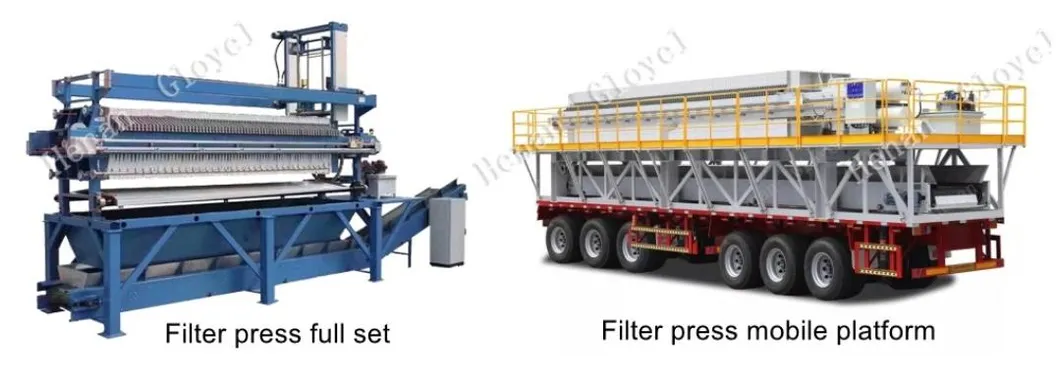

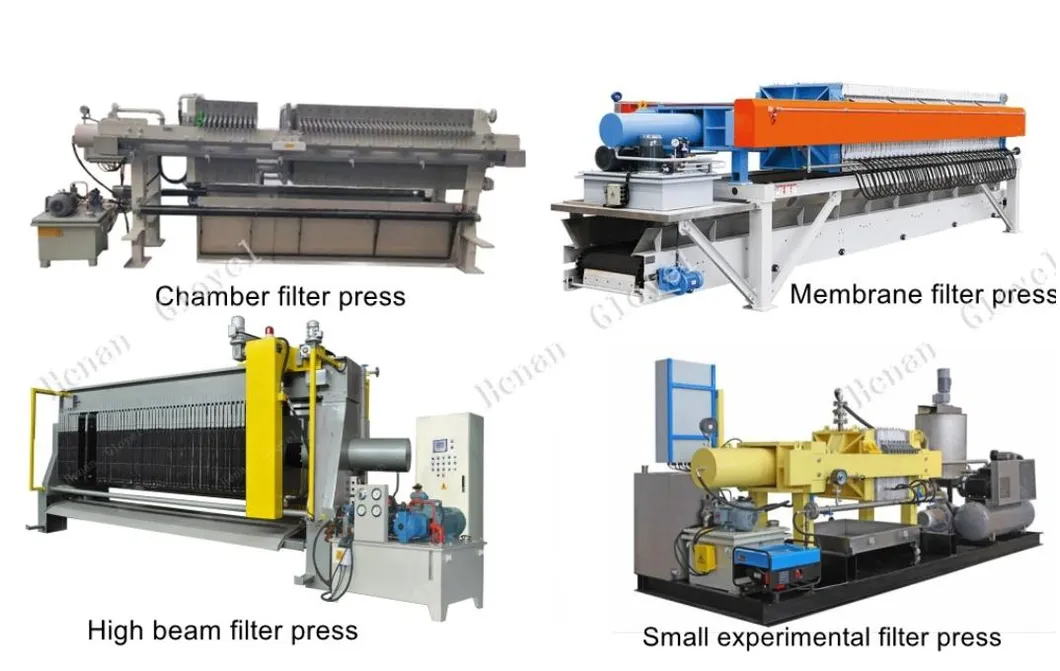

Recommended Products

Frequently Asked Questions

What materials are available for the industrial filter cloth?

We offer a variety of materials including Polyester (PET), Polypropylene (PP), Nylon, and PVA to suit different chemical and temperature requirements.

Which industries use these filter cloths?

Our products are widely used in smelting, mining, petroleum, chemical processing, environmental protection, pharmaceuticals, and food industries for liquid-solid separation.

How do I choose the right filter cloth for my application?

Selection depends on the acidity/alkalinity of the fluid, operating temperature, and the particle size you need to capture. Polyester is great for acid resistance, while PP is excellent for both acid and alkali resistance.

Can the filter cloth be customized?

Yes, we provide custom-made cloths according to different filter materials properties and specific industrial requirements.

What is the maximum operating temperature for these cloths?

It varies by material. For instance, Polyester can handle continuous temperatures up to 80°C and momentary peaks up to 120°C.

Why is the choice of filter cloth so important?

The efficiency of a filter press depends on the cloth's ability to separate solids and liquids effectively without clogging or tearing, ensuring stable production.
