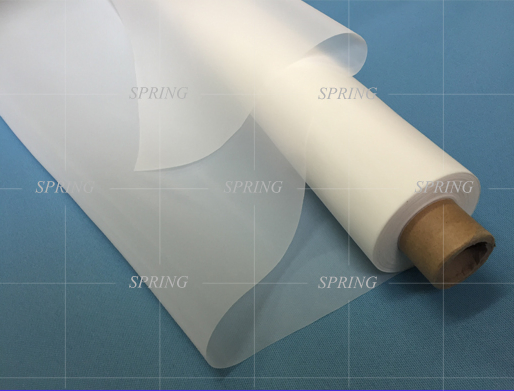

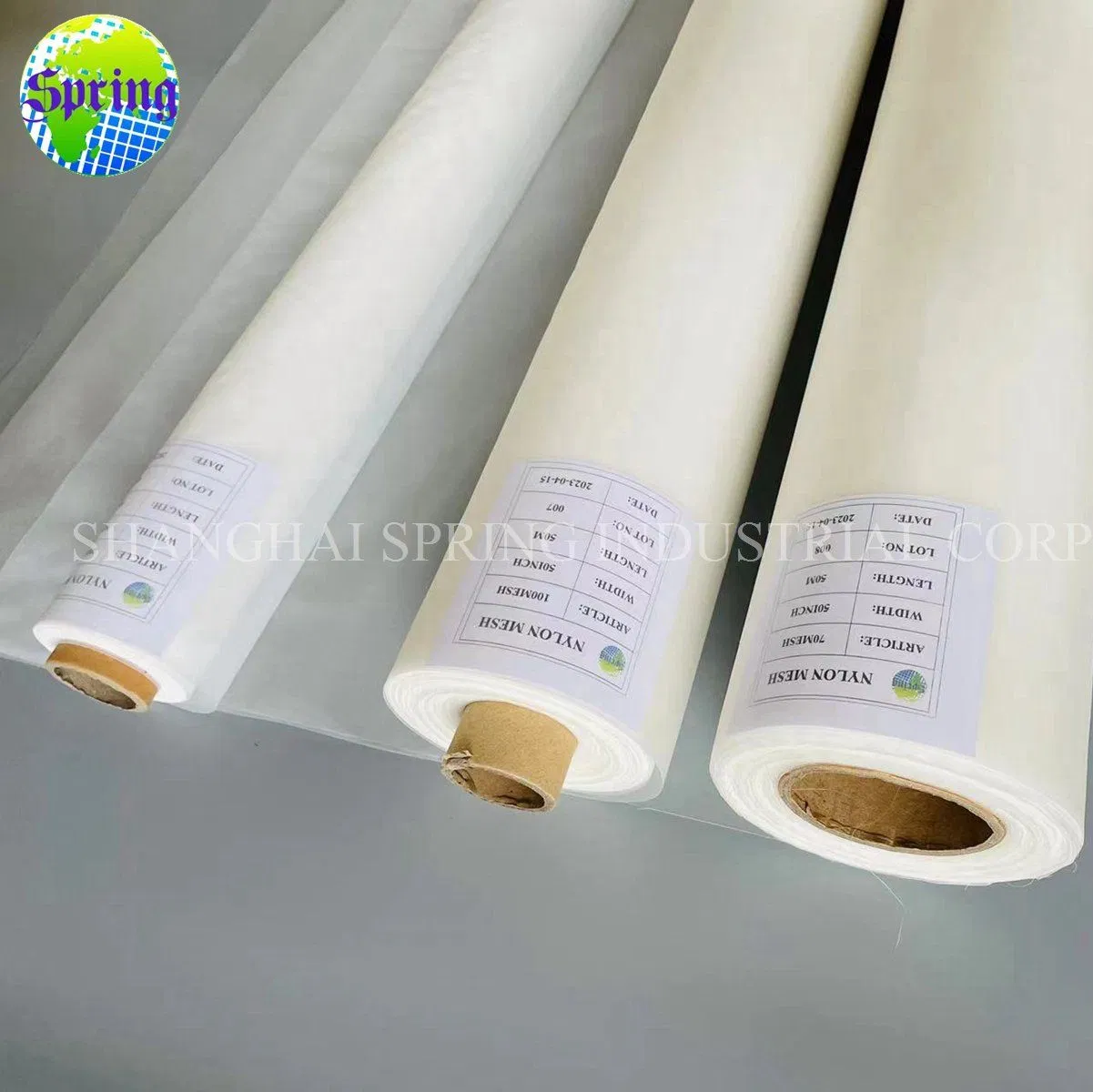

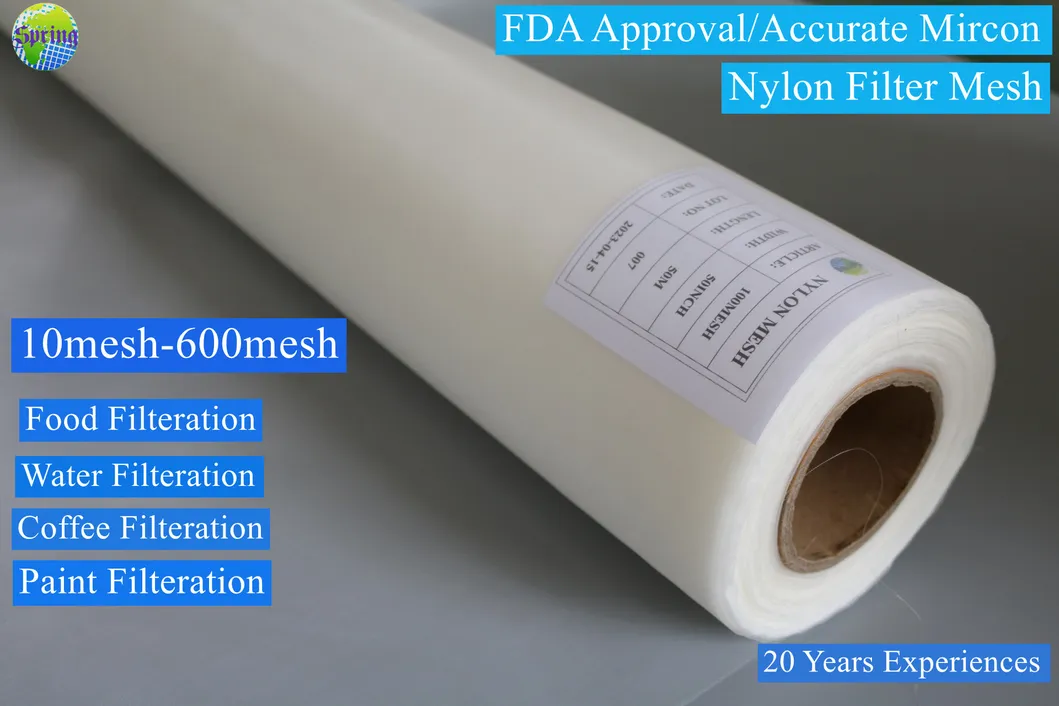

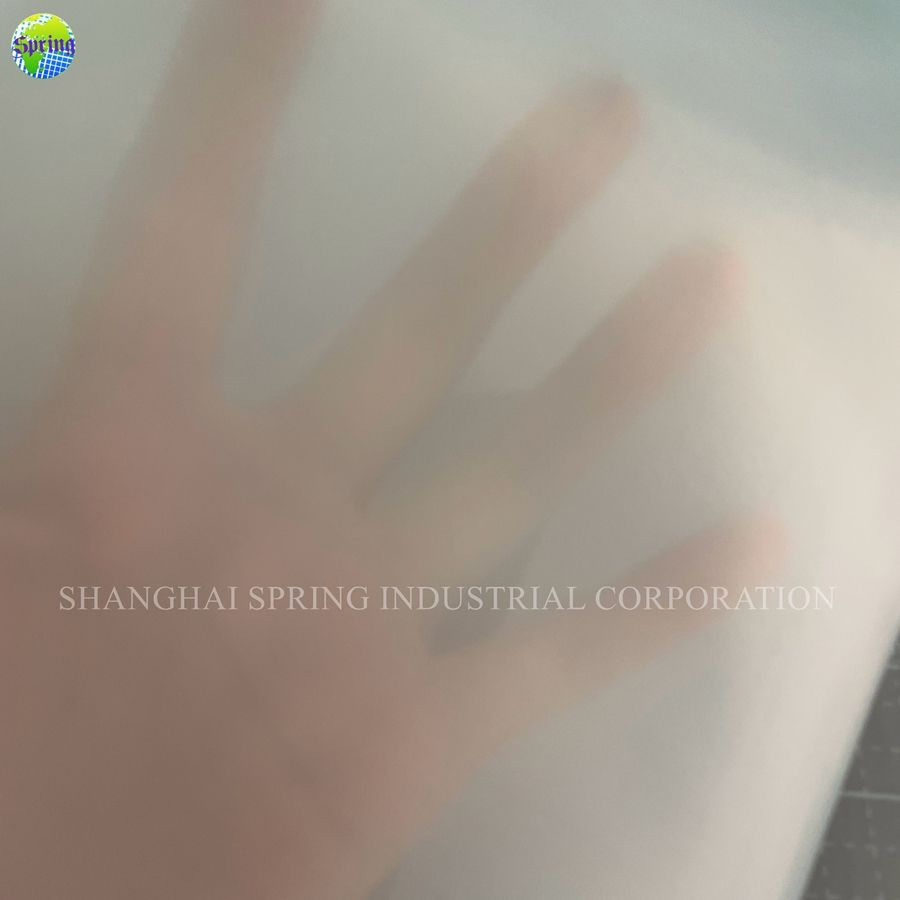

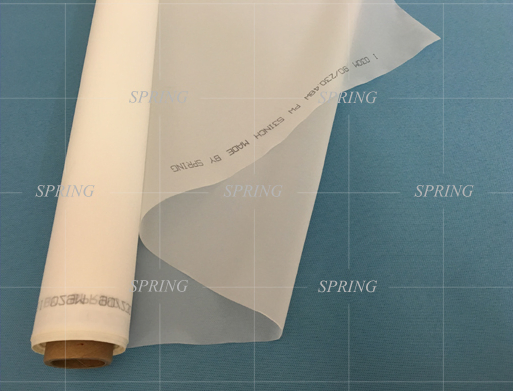

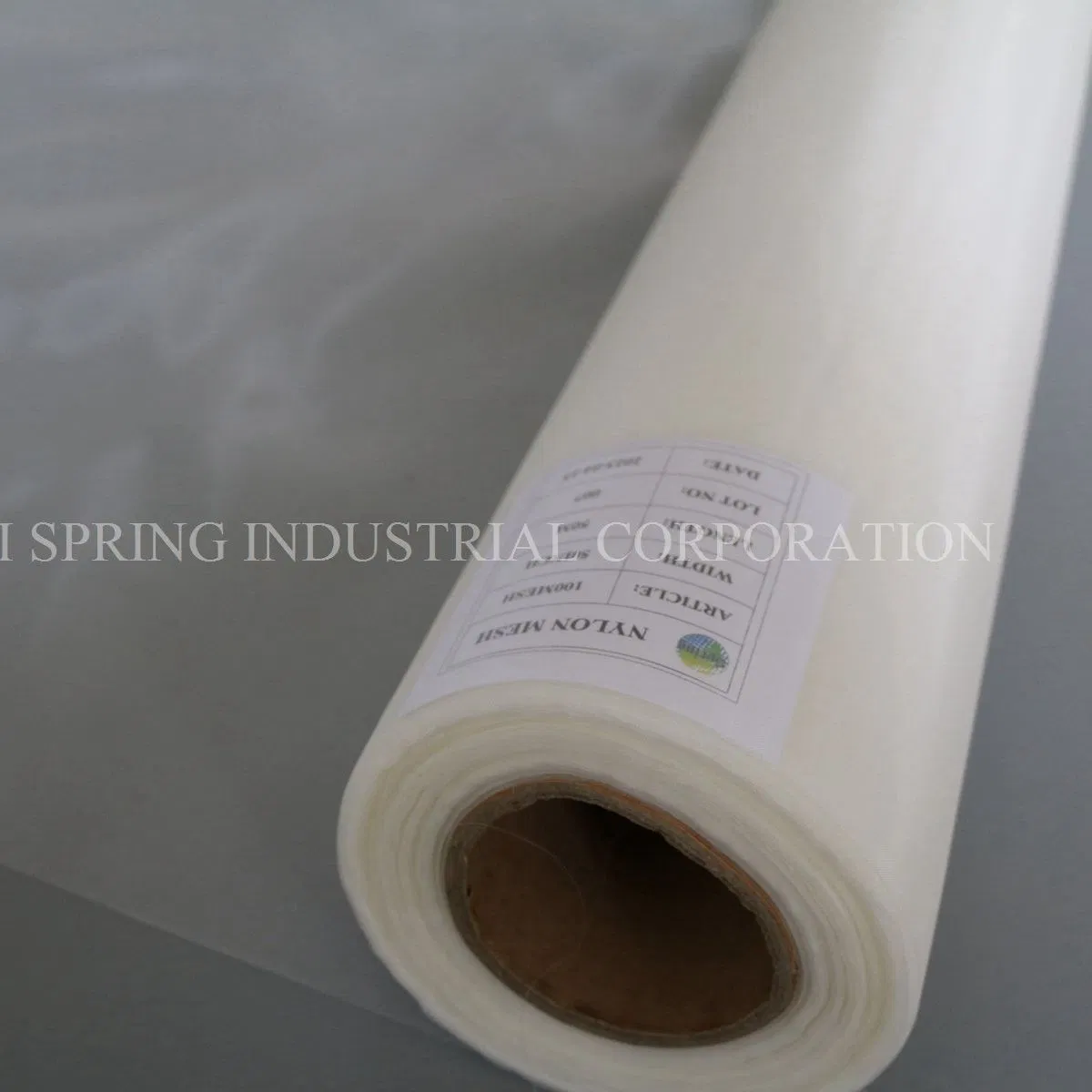

Nylon Mesh 100 Micron PA6/PA66/Nylon/Polyester Filter Cloth

1 / 5

Nylon Mesh 100 Micron PA6/PA66/Nylon/Polyester Filter Cloth

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

ℹ️

Basic Information

Model NO.

JPP4-JPP240&DPP5-DPP200

Material

Nylon/Polyamide & Polyester/Terylene

Function

Antibacterial, Tear-Resistant

Elasticity

High Elasticity

Mesh Type

Square Mesh

Mesh Width

100cm

Woven

Pw or Tw

Certificate

FDA, Silicone Oil Quantification, Fiber Analysis

Gram Weight

20-260GSM

Width Range

1cm-370cm

Specification

3micron to 2000micron (10mesh to 600mesh)

Capacity

800000m/Month

📦

Product Description

Our filter cloth range features 3Micron to 2000Micron FDA Approval PA6/PA66/Nylon/Polyester materials designed for water filter ribbons and industrial applications.

✓ High Precision 100um filter ribbons with no fraying edges, suitable for medical and high-tech applications.

✓ Multi-Material Available in PA6/PA66 Nylon and PET Polyester mesh.

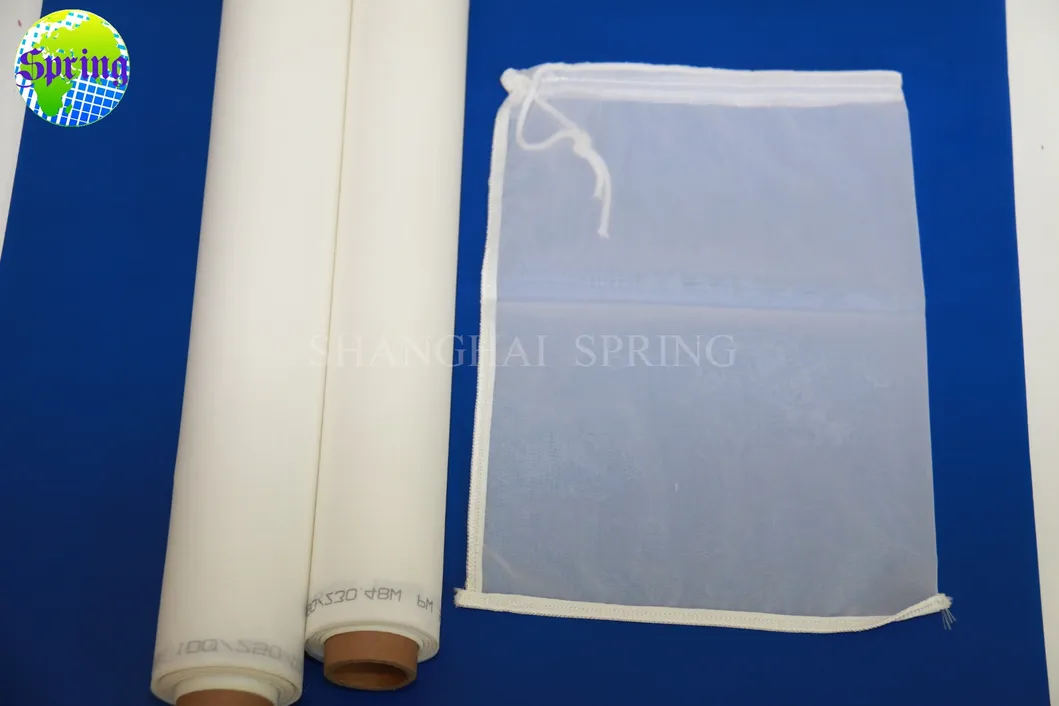

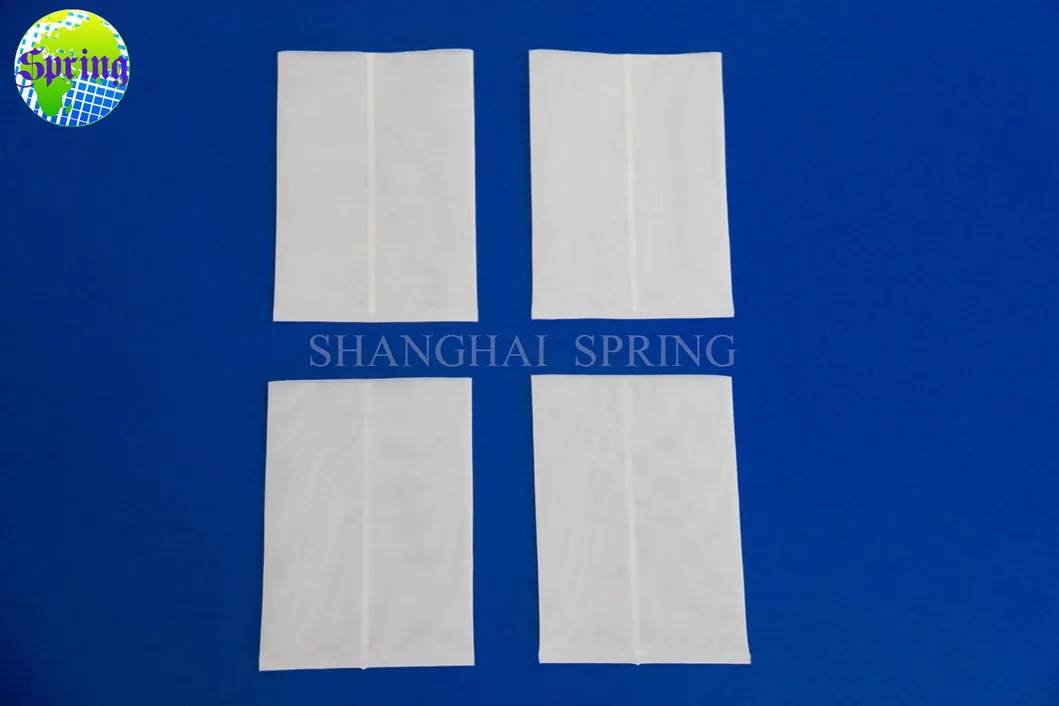

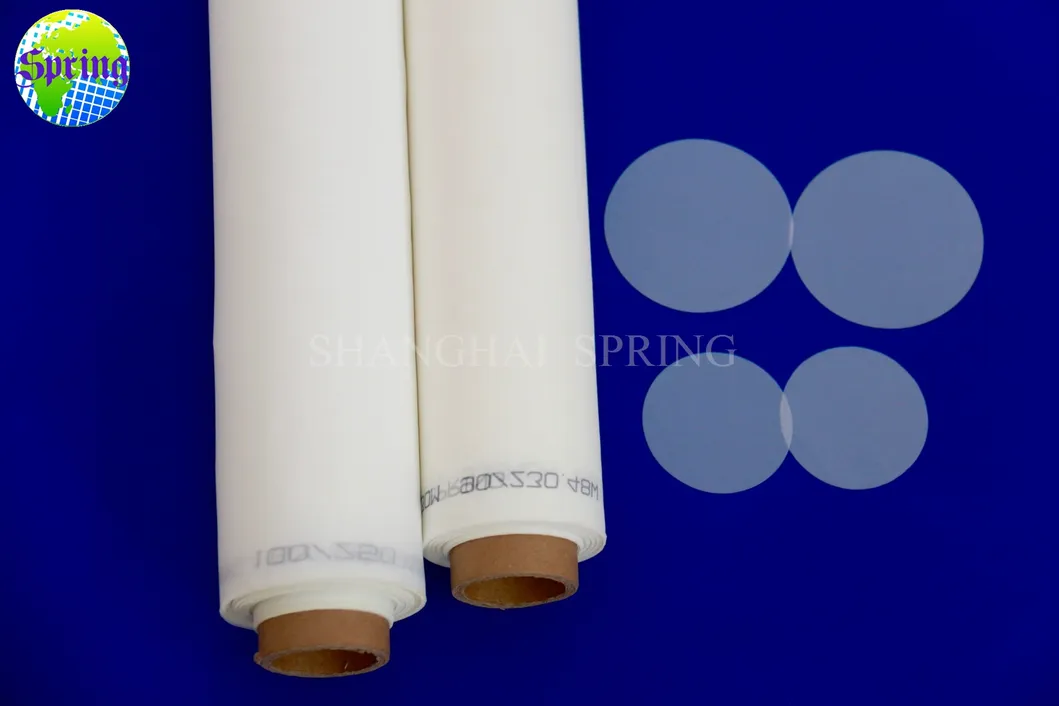

✓ Versatile Forms Can be processed into ribbons, belts, bags, pieces, discs, and tubes.

These filter ribbons are used in automotive and aerospace filters, household and industrial systems, electronic devices, diagnostic test strips, and healthcare perfusion filters.

⚙️

Key Features & Advantages

1. High tension and smooth surface

2. Excellent diathermancy and air permeability

3. Superior Acid and Alkali resistance

4. Long working life and hard wear resistance

5. Manufactured using imported weaving technology

🚀

Industrial Applications

The nylon and polyester mesh is widely utilized across various sectors including:

Filtration systems (Liquid & Gas)
Printing and dyeing industries
Petroleum and Chemical processing
Metallurgy and Cement production
Environmental dedusting (99.99% efficiency)

📊

Technical Parameters

Type	Mesh Count (/cm)	Mesh Count (/inch)	Thread Diameter (um)	Mesh Opening (um)	Open Area (%)	Thickness (um)
JPP 4	4	10	550	1950	61	1020
JPP 5	5	13	400	1600	64	760
JPP 6	6	15	350	1317	62	680
JPP 8	8	20	300	950	58	585
JPP 10	10	25	300	700	49	576
JPP 20	20	50	150	350	49	375
JPP 40	40	100	100	150	36	190
JPP 100	100	254	43	57	32	72
JPP 140	140	355	38	33	22	75

* Theoretical data for reference only. Slight variances may occur in actual production.

📜

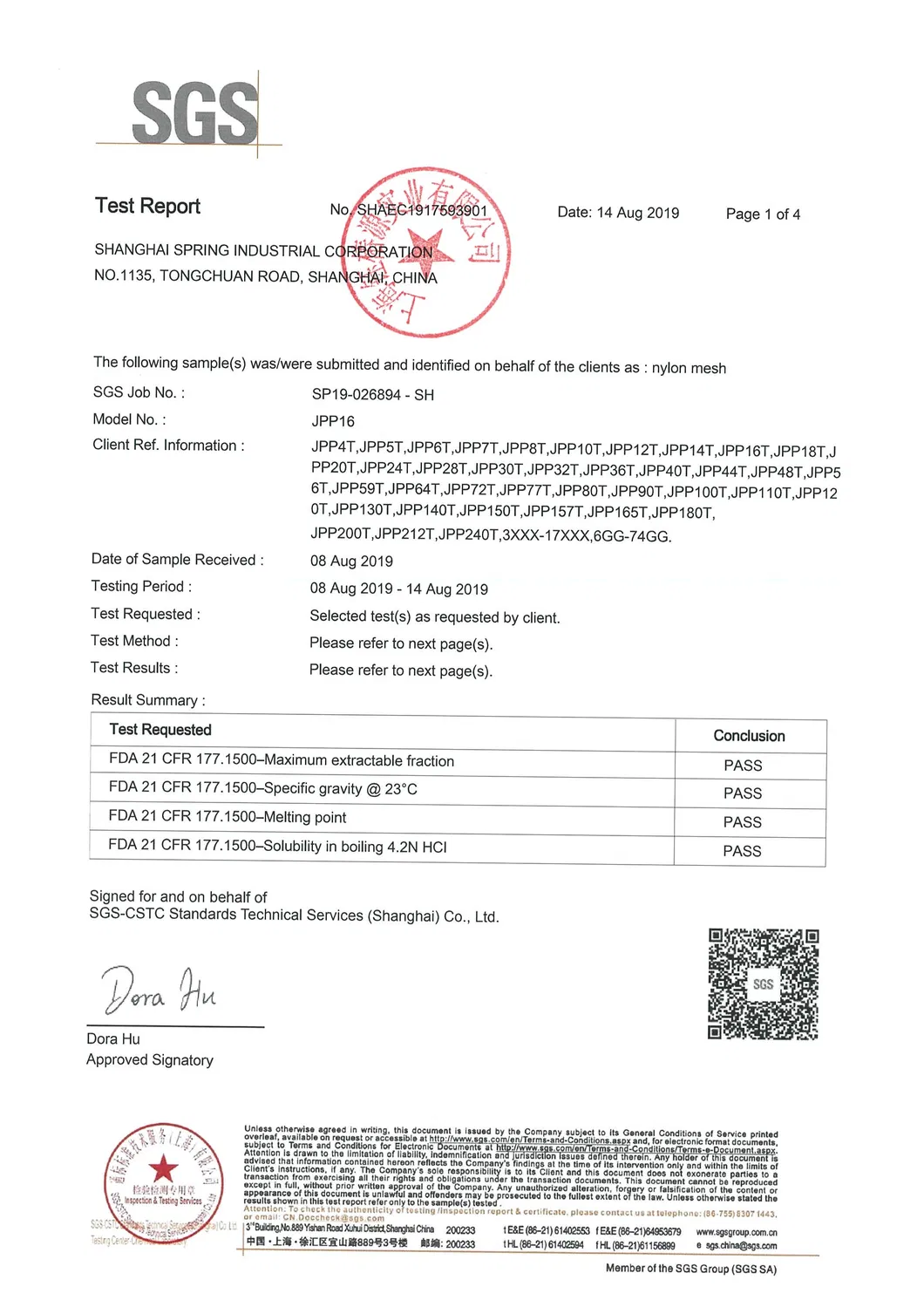

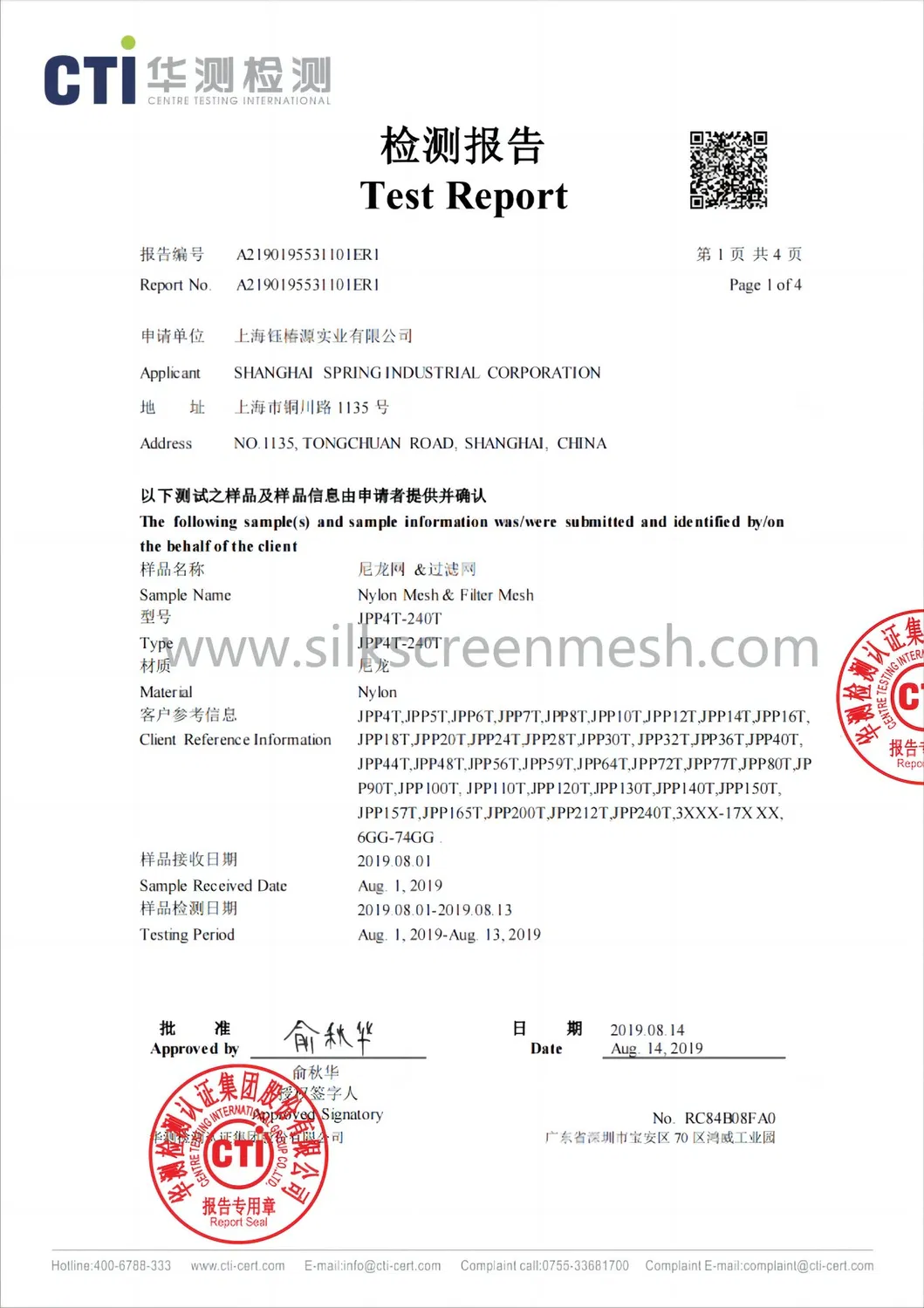

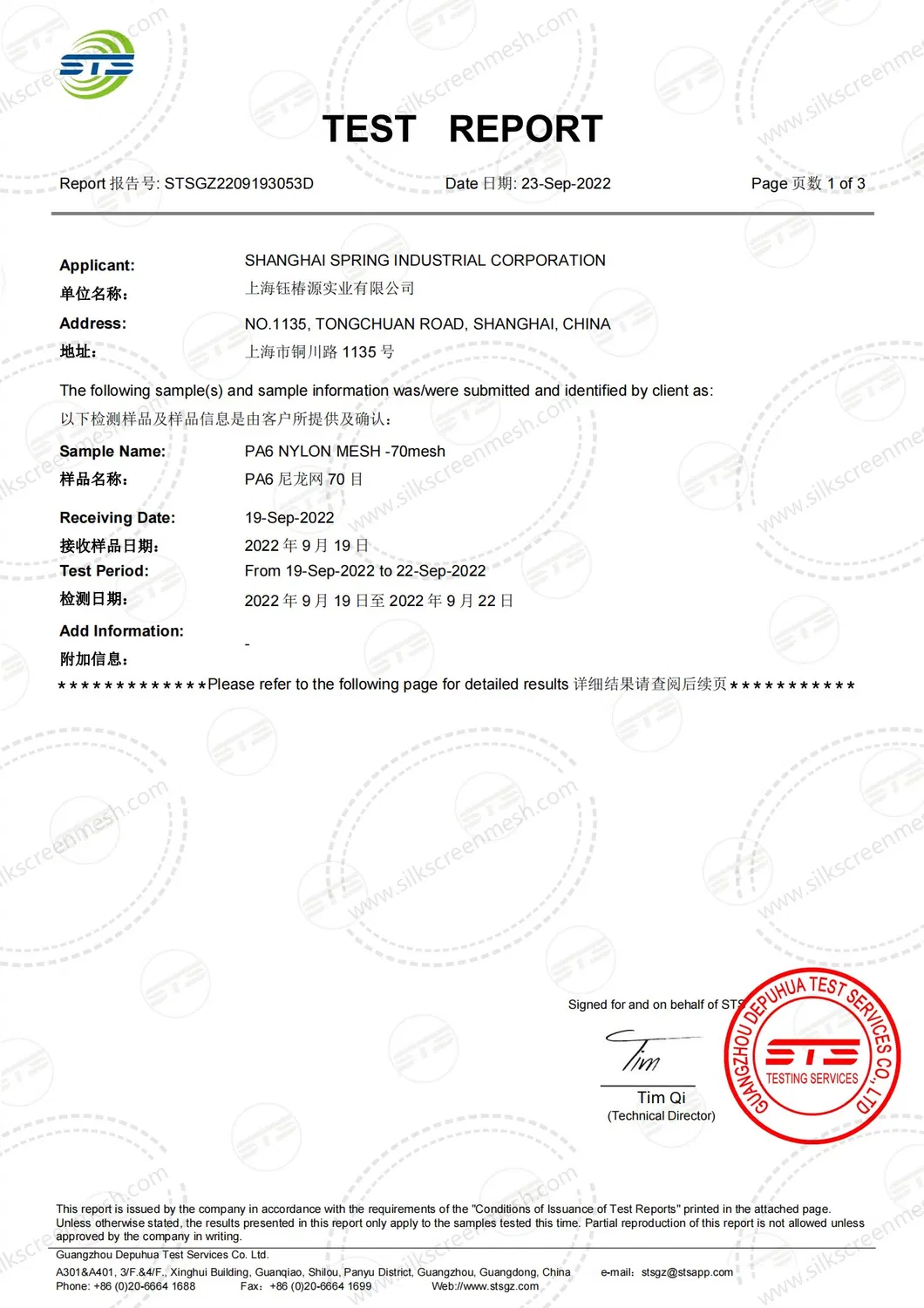

Certifications & Quality

FDA Approval: Safe for food and water contact.
Silicone Oil Quantification: <0.1, ideal for automotive and chemical filtration.
Material Analysis: 100% verified Nylon/Polyester composition.

🏭

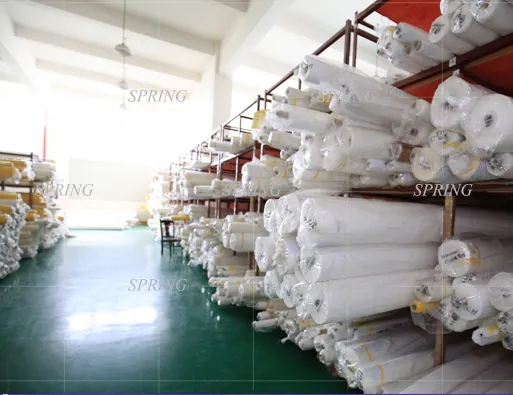

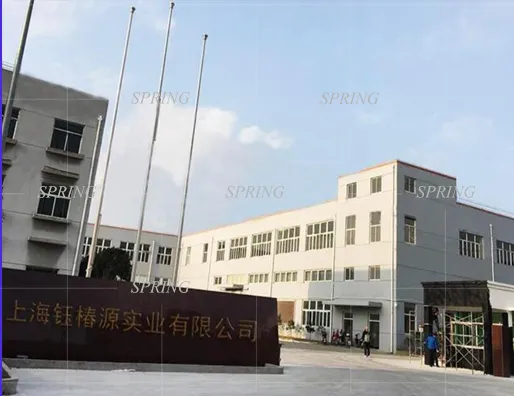

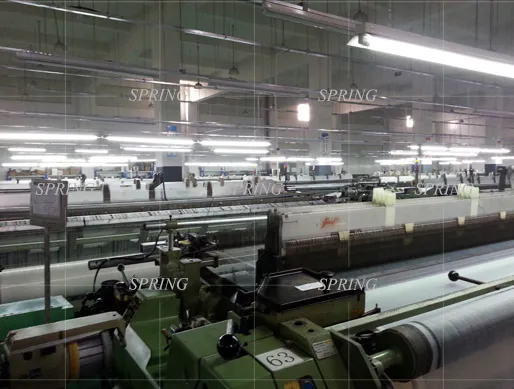

Factory Overview

❓

Frequently Asked Questions

What materials are your filter cloths made of?

Our filter cloths are primarily made of 100% Nylon (PA6/PA66) or Polyester, depending on your specific filtration requirements.

Are the filter meshes safe for food contact?

Yes, our filter mesh is FDA approved, making it environmentally safe and suitable for food or water filtration applications.

What is the range of mesh openings available?

We offer a wide range from 3 Micron up to 2000 Micron, covering mesh counts from 10 mesh to 600 mesh per inch.

Can I customize the size and shape?

Absolutely. We can provide the mesh cut into specific pieces, bags, discs, tubes, belts, or any custom size based on your request.

What is the lead time for orders?

Lead times vary by quantity: 2 days for 1-10 meters, 8 days for 11-1000 meters, and 15 days for orders up to 5000 meters. Larger quantities are negotiable.

What chemical resistances do these fabrics have?

Our filter fabrics exhibit excellent acid and alkali resistance, as well as high air permeability and diathermancy for industrial use.
