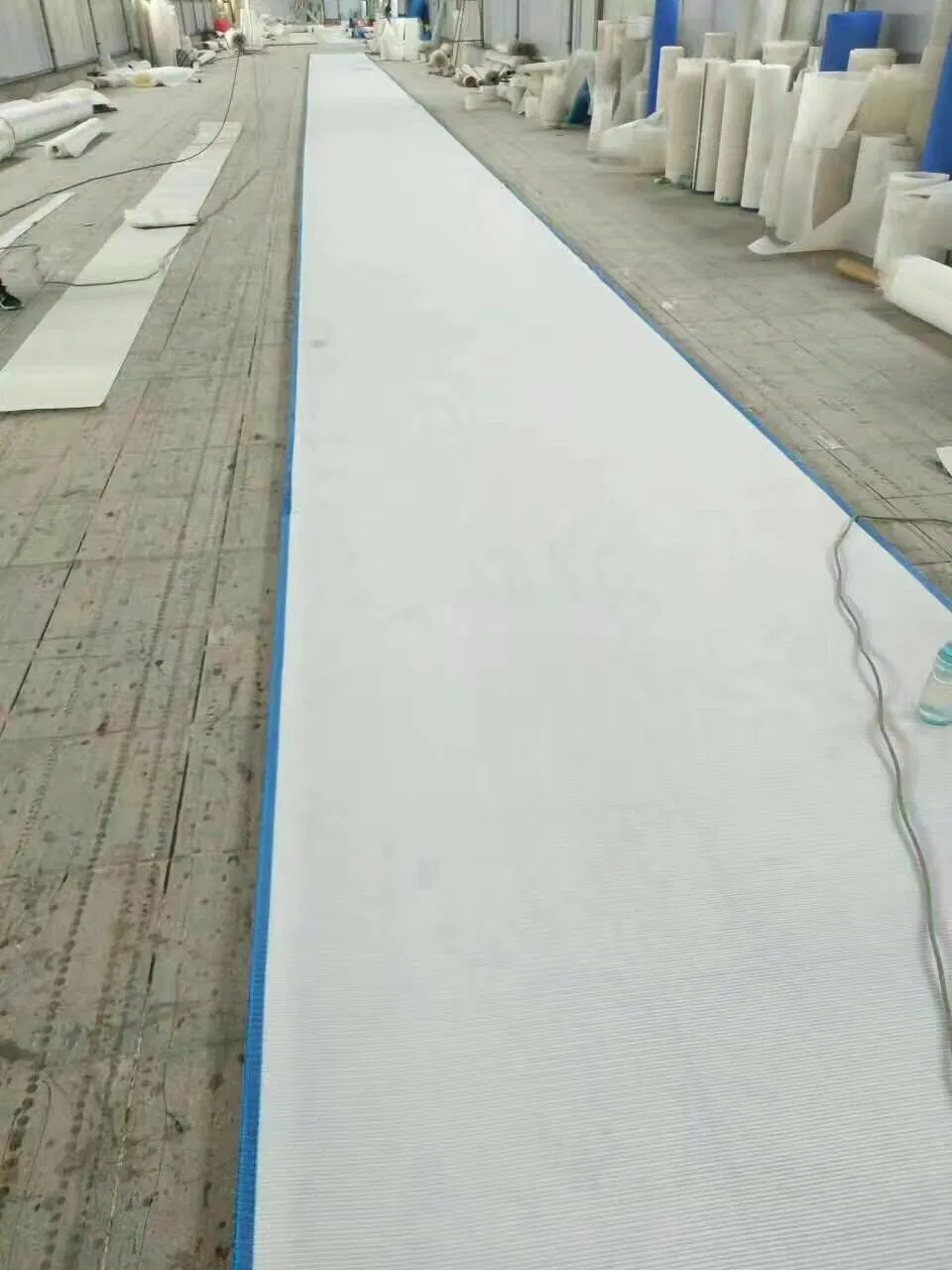

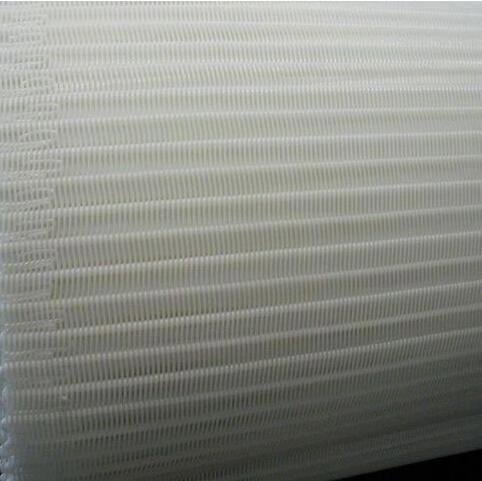

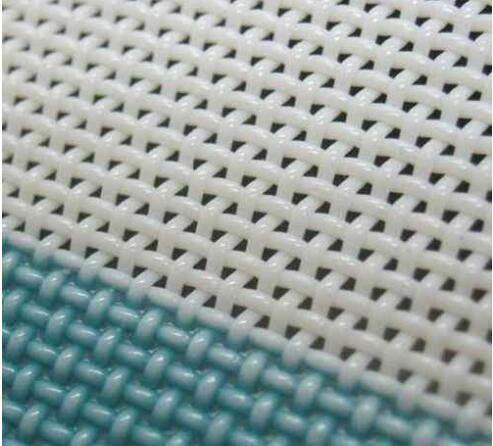

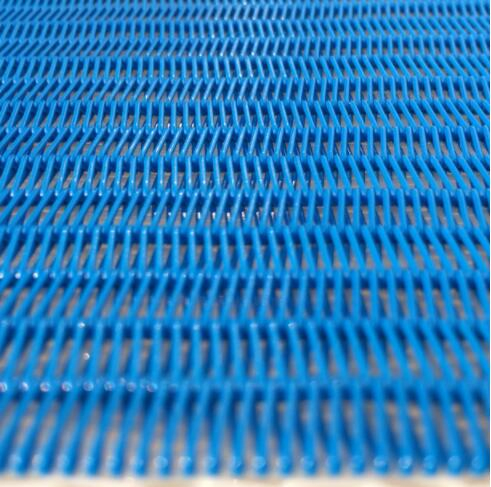

100% polyester press filter cloth fabrics, also known as Press-Filter Fabrics, are primarily engineered for demanding industrial processes including sludge dehydration, pulp and juice squeezing, mine smelting, and mine tailings drying.
These fabrics feature exceptional water and air permeability while maintaining a non-revealed sludge barrier. Their chemical resistance to acids and alkalis, combined with a specialized structural design, ensures easy sludge peeling and efficient cleaning for a long operational lifespan.

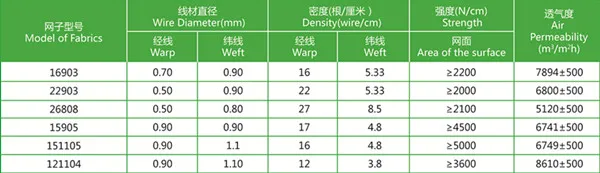

| Type | Single Loop Spec (mm) | Monofil Diameter (mm) | Strength (N/cm) | Thickness (mm) | Weight (kg/m2) | Air Permeability (m3/m2h) | |
|---|---|---|---|---|---|---|---|

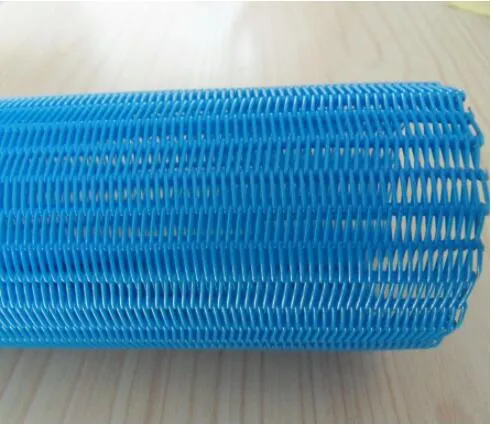

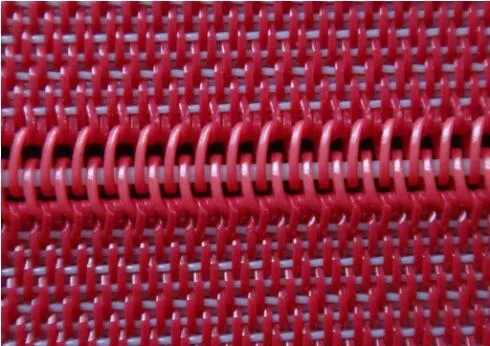

| Spiral Loop | Threading | ||||||
| Super loop | 4.8 X 10 | 0.9 | 1.1 | 2300 | 3.03 | 1.64 | 21000 |
| Large loop | 3.8 X 7.0 | 0.68 | 0.9 | 2000 | 2.45 | 1.40 | 18000 |
| Medium loop | 3.5 X 6.0 | 0.68 | 0.9 | 2000 | 2.45 | 1.31 | 16000 |
| Small loop | 3.2 X 5.2 | 0.5 | 0.8 | 1800 | 1.87 | 0.97 | 15000 |
1. Sea Freight: Wooden / polywood boxes + water proof plastic bags.
2. Air Freight: Specialized water proof plastic bags.
