| Model NO. | pp | Type | Woven Filter |
| Hole Shape | Square | Manufacturing Method | Composite Fabric |
| Paper Type | Qualitative | Certificate | CE, ISO9001, ISO14001 |
| Application | Liquid and Solid Separation | Transport Package | Customized |
| Specification | Customized | Origin | China |
| Production Capacity | 800PCS/Year | Certification | CE, ISO14001, ISO45001, ISO9001 |

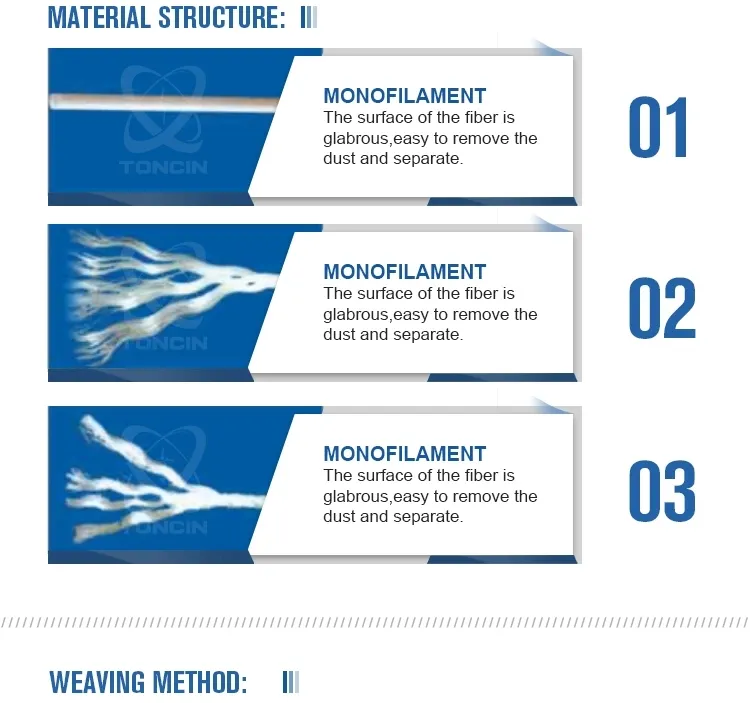

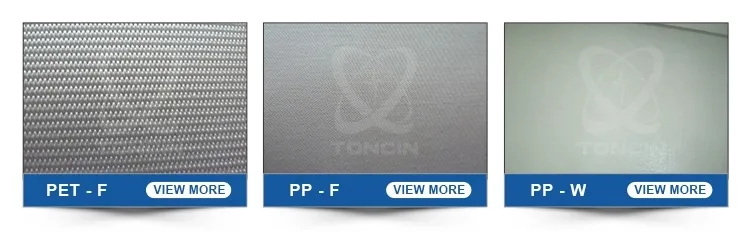

1-PET monofilament-multifilament filter cloth; 2- PP monofilament-double filter cloth; 3- PP monofilament-multifilament filter cloth; 4- monofilament filter cloth;
Double layer filter cloth is made of double-layer filament material (upper layer for filtration, lower is for support), which is widely applied in belt vacuum filter, disc filter, centrifuge etc.
Single-layer filter cloth is made of filament material under 2 layers, and it is widely applied in belt vacuum filter belt press filter, plate press filter, disc filter, centrifuge etc. Multifilament filter cloth is made of long fiber or short fiber and is widely applied in belt vacuum filter, belt press filter, plate press filter, disc filter, centrifuge etc.
| Property | Polyester | Polypropylene (PP) | Polyamide (PA) | Polyvinyl Alcohol |
|---|---|---|---|---|
| Acid Resistance | Good | Fair | Weak | Not Acid Resistant |
| Alkaline Resistance | Weak Alkaline | Good | Fair | Strong Alkaline |
| Breaking Extension (%) | 20-50 | PET | 20-40 | 12-26 |
| Breaking Strength (g/d) | 4.3-9 | 4.5-9 | 4.5-9.5 | 4-10 |
| Soften Point (ºC) | 238-240 | 140-160 | 180-235 | 220-230 |
| Melt Point (ºC) | 255-260 | 165-173 | 215-260 | 220 |
| Specific Gravity | 1.38 | 0.91 | 1.14 | 1.26-1.30 |
| Heat Resistance | 120ºC | 90ºC (Shrink) | 130ºC (Shrink) | 100ºC (Shrink) |

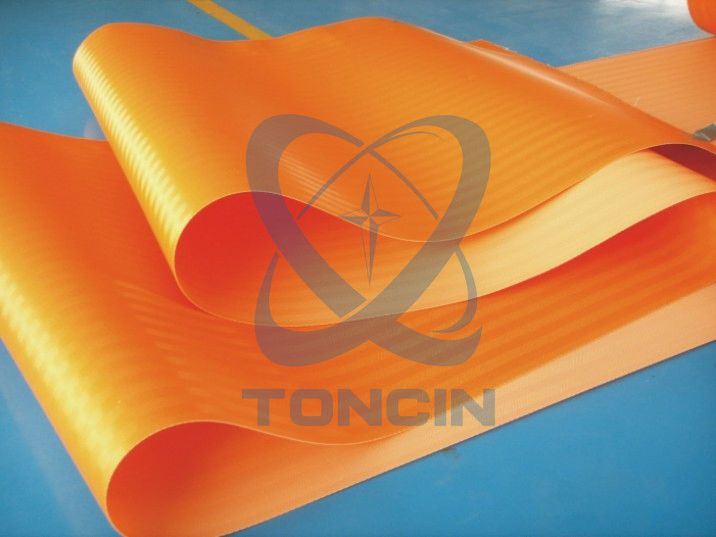

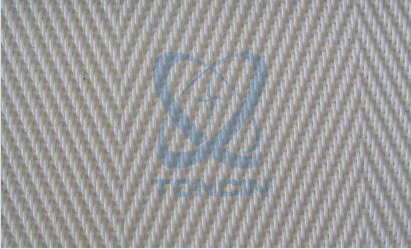

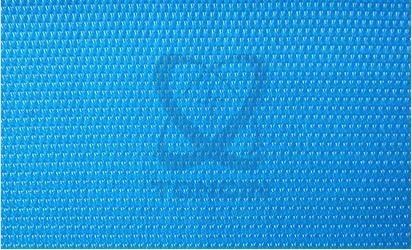

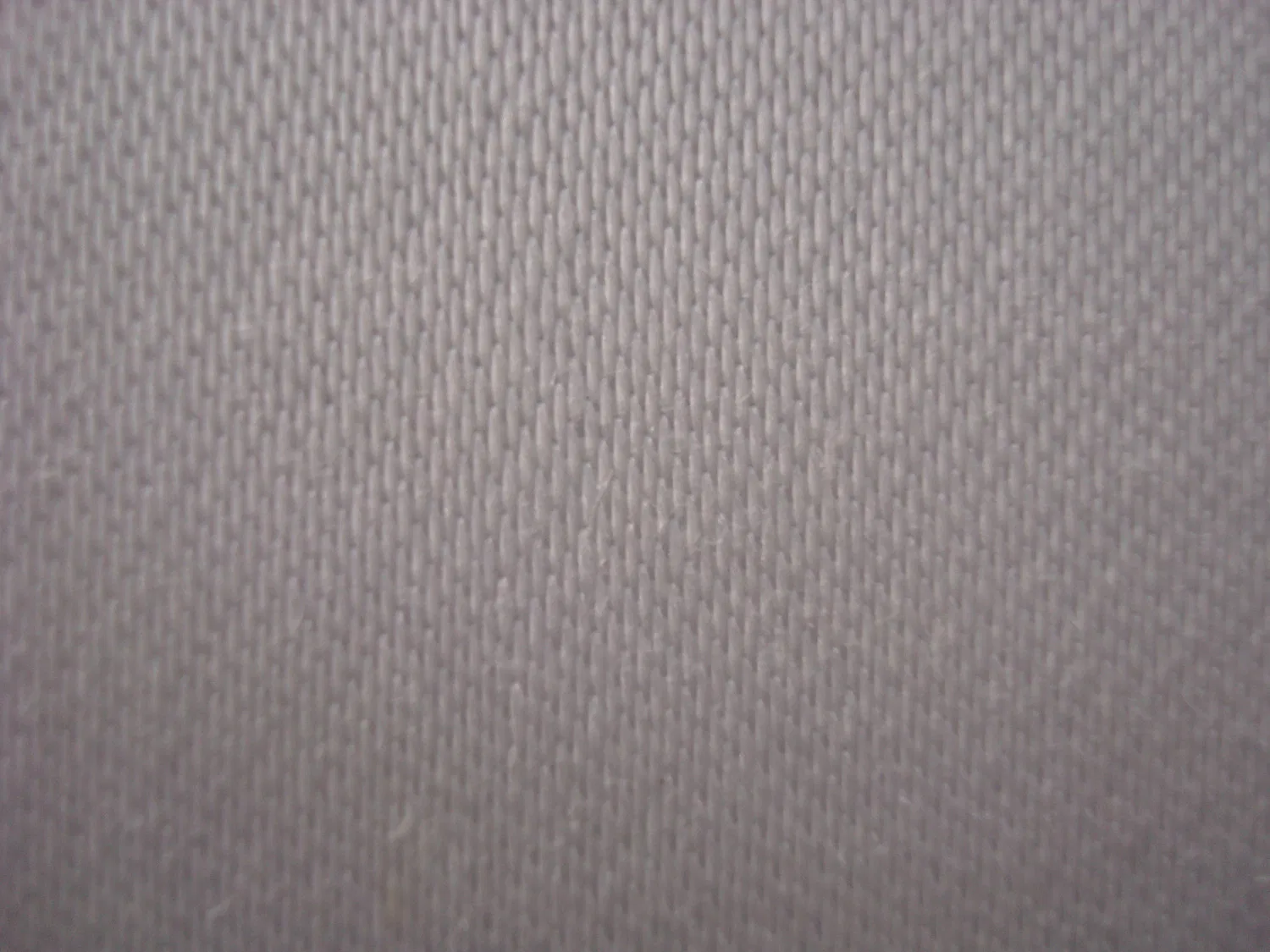

Polypropylene filter cloth is weaved by monofilament or multifilament, which has good air and water permeability with good ability to prevent the granules from blocking in the fabrics. Meanwhile, they can be reused for the reason that the filter cake could be peeled off easily.

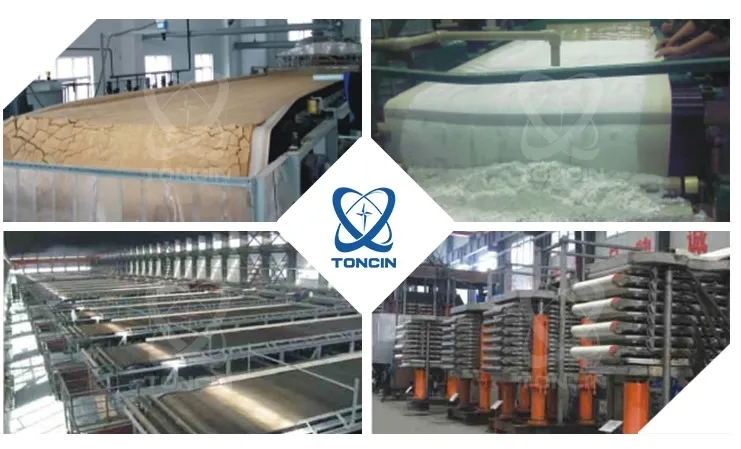

The cloth is widely applied in horizontal vacuum belt filters, rubber vacuum belt filters, belt driers, belt filter presses, HVPF vertical automatic filter presses and more. Industries served include:
Package: Standard export package or as required.
Shipping: Standard delivery within 2 months.
Transport Way: Available by sea or by air.
