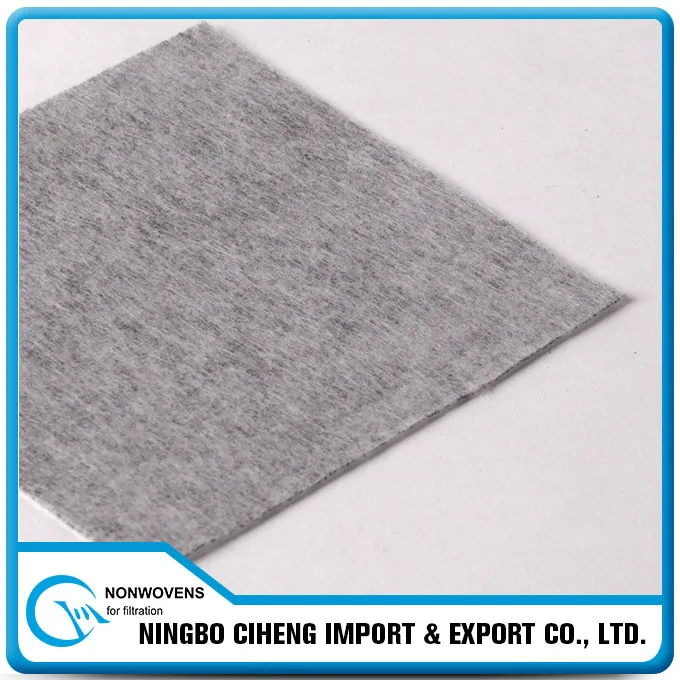

Product Description

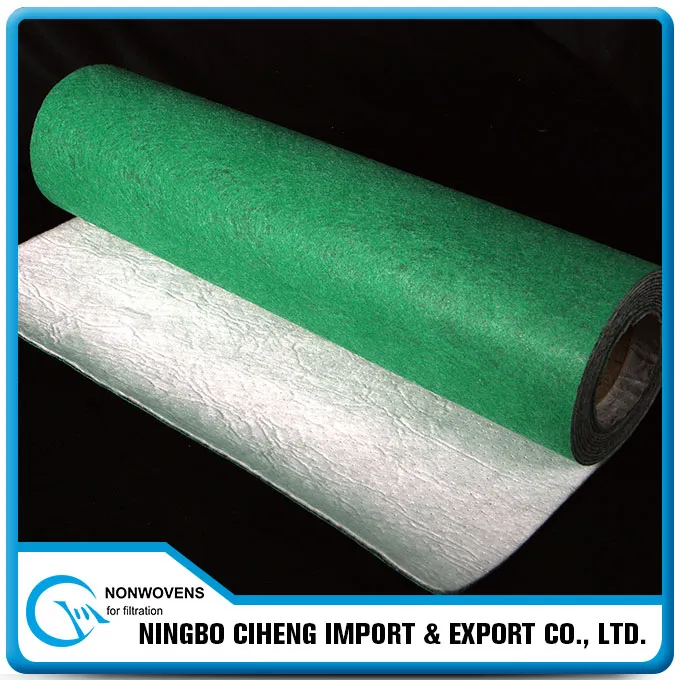

The composite activated carbon cloth is set up to form by hot pressing technology with high frequency vibration equipment which spread coconut shell activated carbon evenly on the surface of non-woven base material. It's a kind of high efficiency filtration material which can effectively adsorb various industrial waste gases in the air with lower resistance of wind. It has the physical properties of cloth (strong, flexibility and durability), meanwhile with the adsorption feature and microporous filter performance of activated carbon.
Main Product Properties
| Property |
Type: 0075 |
Type: 016G |
Type: 011 |
| Material Composition |
filament + melt-blown + activated carbon |
Filament + active carbon + static fabric |
Filament + active carbon + static fabric |
| Colour |
White |
Green |
White |
| Weight |
390+0.1mm |
500±25 g/m² |
300±25 g/m² |
| Thickness |
- |
1.8±0.15 mm |
- |
| Filter Efficiency |
≥98% |
2.5μm≥90% @10Pa |
0.3μm≥97% @18Pa |
| Ventilation Property |
1500+300L/sqm.S |
700±100L/m².S |
500±100L/m².S |
| Dust Holding |
350g/sqm |
500g/m² |
500g/m² |
| Tensile Strength (ISO 9073-3) |
md 250N / cd 235N (5cm) |
md 240N / cd 240N (5cm) |
md 240N / cd 240N (5cm) |
| Heat Strength |
>130ºC |
>120ºC |
>120ºC |
| Application |

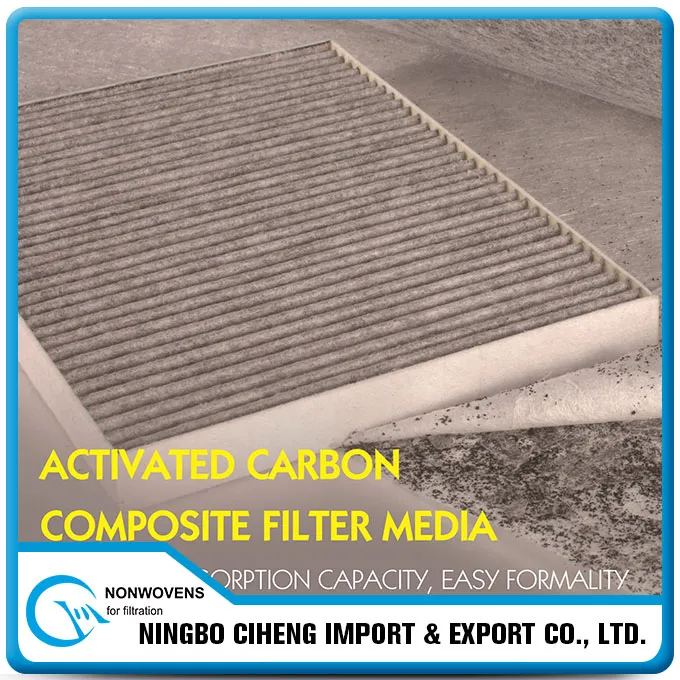

HEPA Cabin Filters / HVAC Filters / Air Cleaner / Vacuum Filter |
Marks: This fabric is composited in order with multi-layers of different efficiency rate of nonwoven material and carbonized in the middle layer. The nonwoven can be optional with spun-bond, spun-lace, and needle punch nonwovens.
Typical Applications

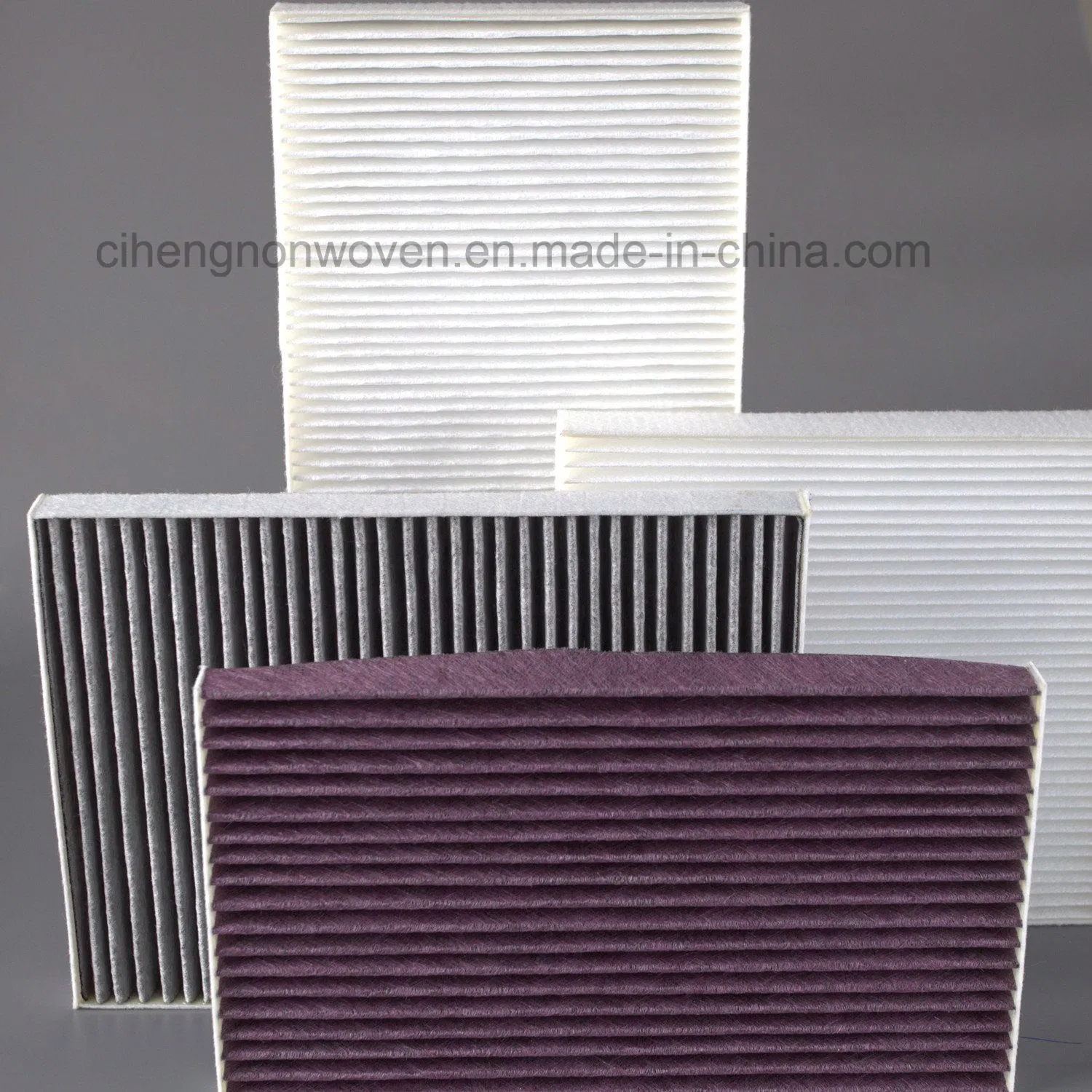

This product is widely used in central air-conditioning filters, auto cabinet air filters, protective clothing, deodorant shoe materials, and other filtration fields. It is perfect for home and auto air purification after pleating, and can also be used for industrial and domestic water purification.

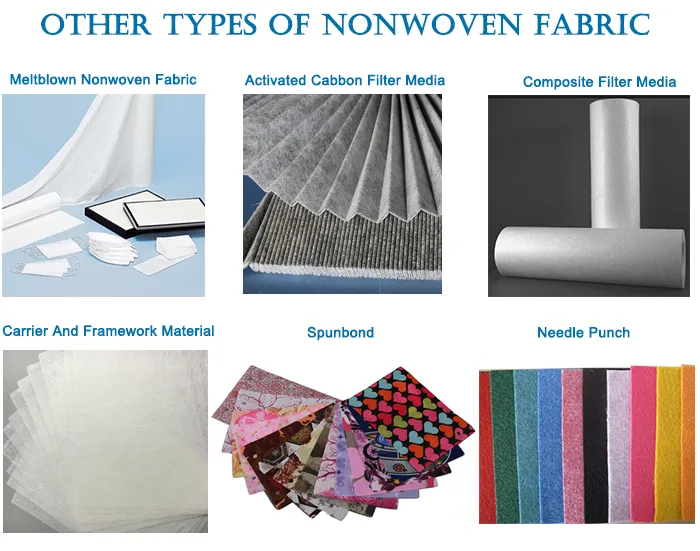

Other Nonwoven Fabric Types

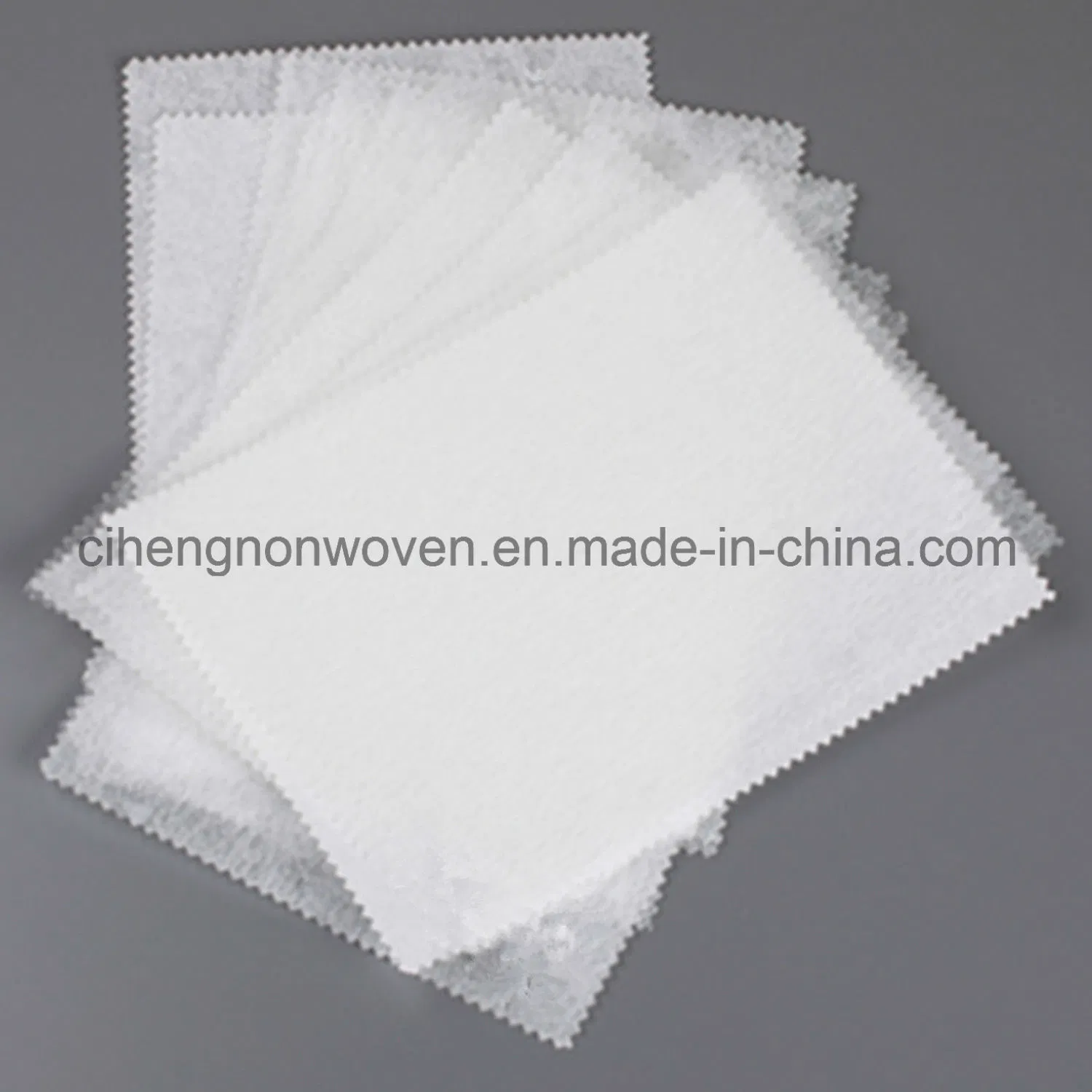

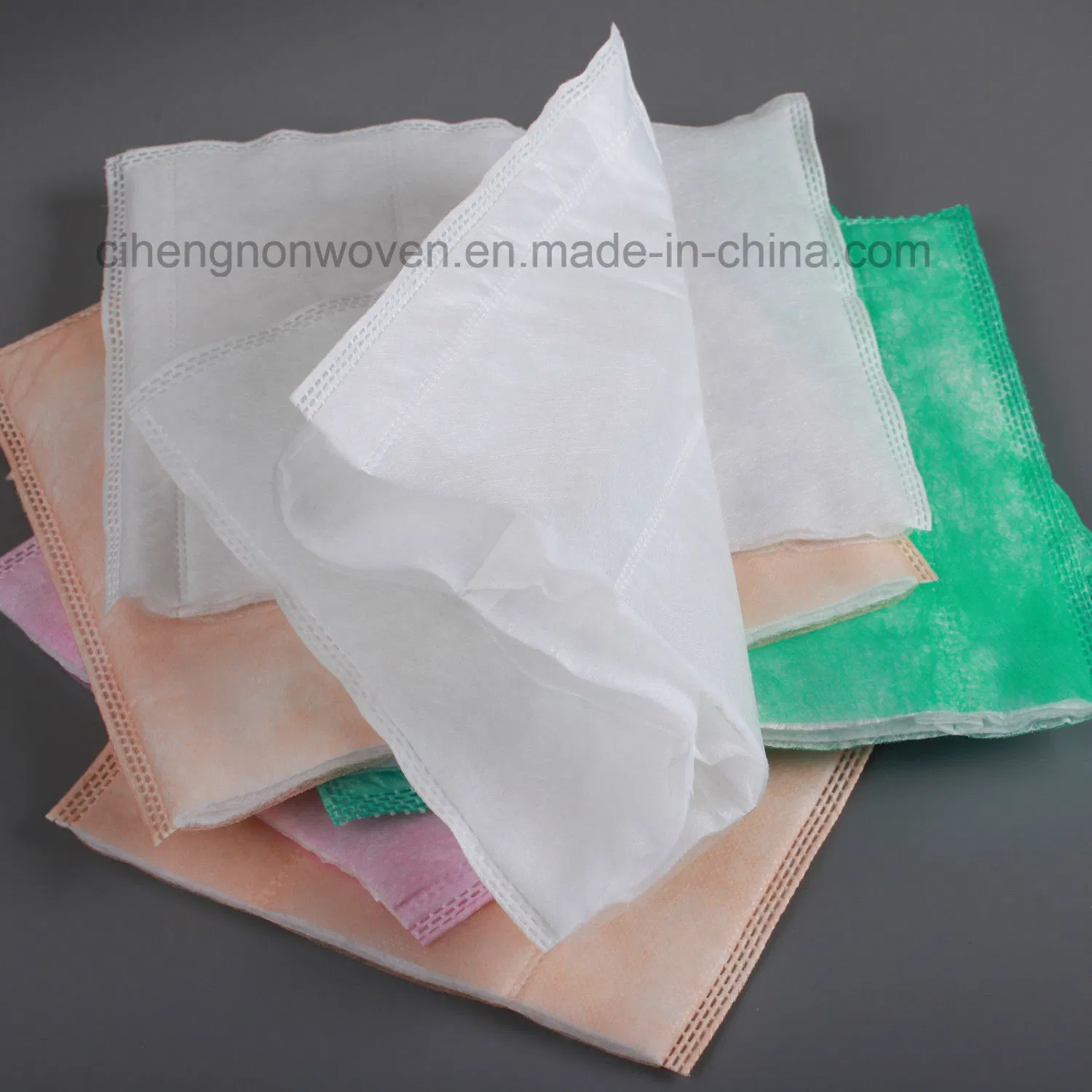

We supply various types of nonwoven fabrics used as filter media in air and liquid filtration. Categories include PP melt-blown, PP spun-bonded, PET fibre hot-rolling/spun-bonded/thermos-bonded, needle-punched nonwovens, and ultrasonic composite materials.
Frequently Asked Questions (FAQ)
Q1: What is the main advantage of composite activated carbon cloth?
It combines the high adsorption capacity of coconut shell activated carbon with the physical strength and flexibility of nonwoven fabric, offering low wind resistance and high efficiency.
Q2: Which harmful gases can this material effectively remove?
It has excellent adsorption effects on volatile organic compounds (VOCs) like benzene and formaldehyde, as well as sulfur dioxide, ammonia, and other industrial waste gases.
Q3: Can the material be used in automotive cabin filters?
Yes, it is widely used in auto cabin air filters and HVAC systems due to its superior dust holding capacity and gas filtration properties.
Q4: Is it possible to customize the specifications of the filter media?
Absolutely. Specifications such as weight, width, and material composition can be customized to meet specific filtration requirements and reduce material waste.
Q5: How do you ensure the quality of each production roll?
We provide laboratory test results for every roll of product, ensuring full quality tracking and adherence to international standards like ISO and EN.
Q6: What is the temperature resistance of this carbon cloth?
Depending on the specific type, our composite activated carbon cloth can withstand temperatures ranging from 120ºC up to over 130ºC.
